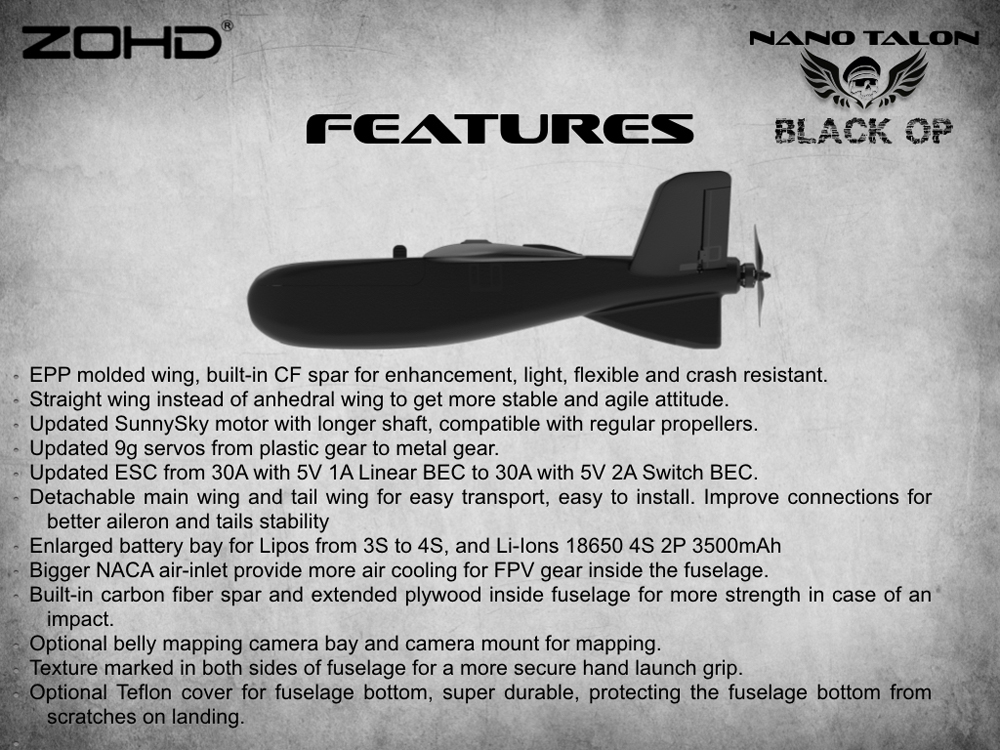

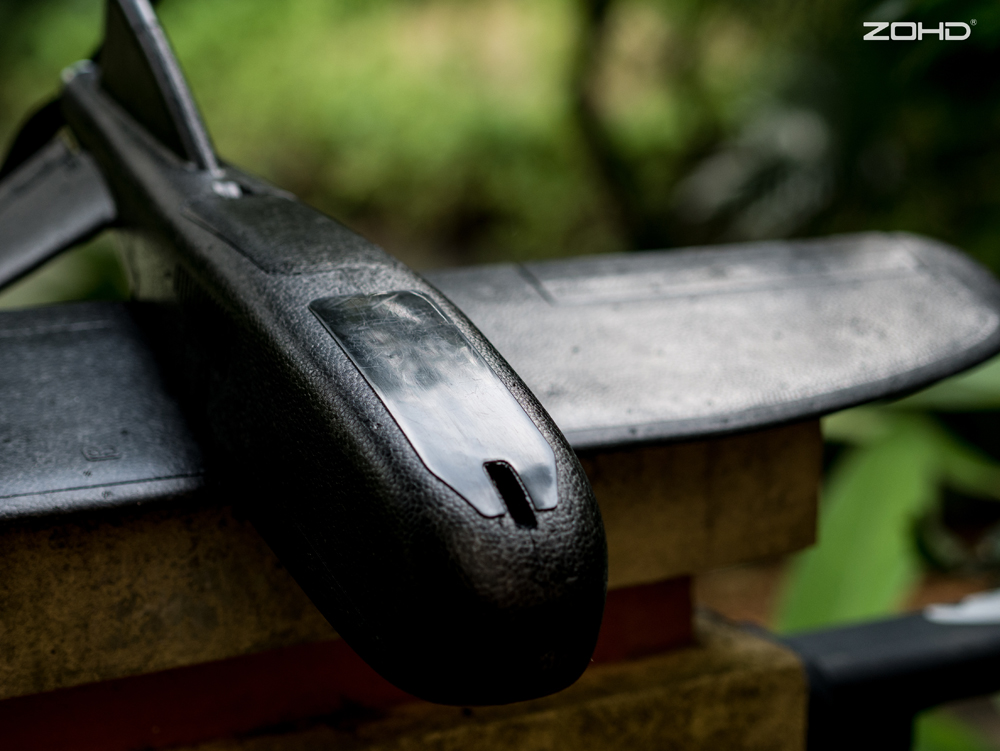

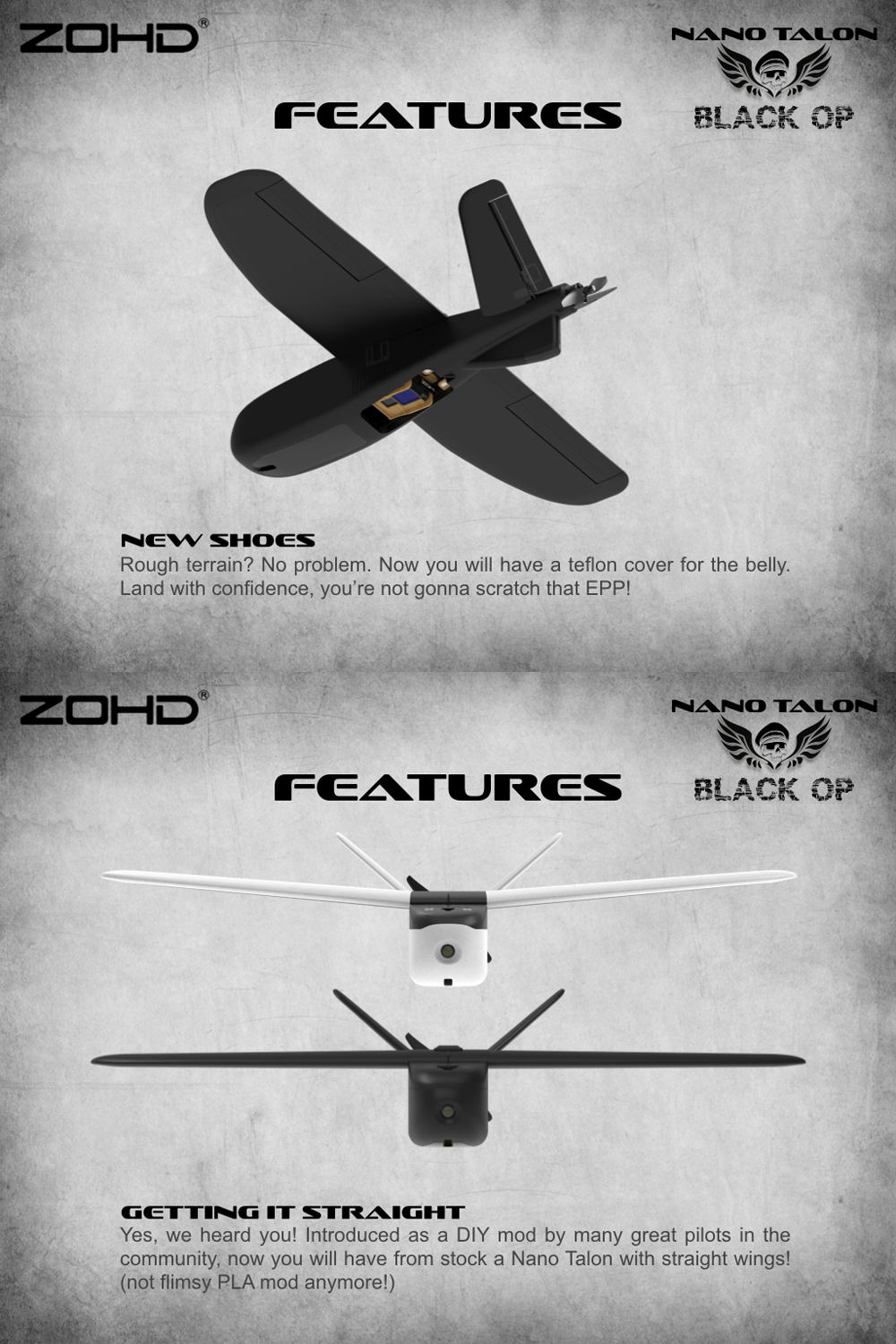

* Optional Tefl0n cover for fuselage bottom, super durable, protecting the fuselage bottom from scratches on landing

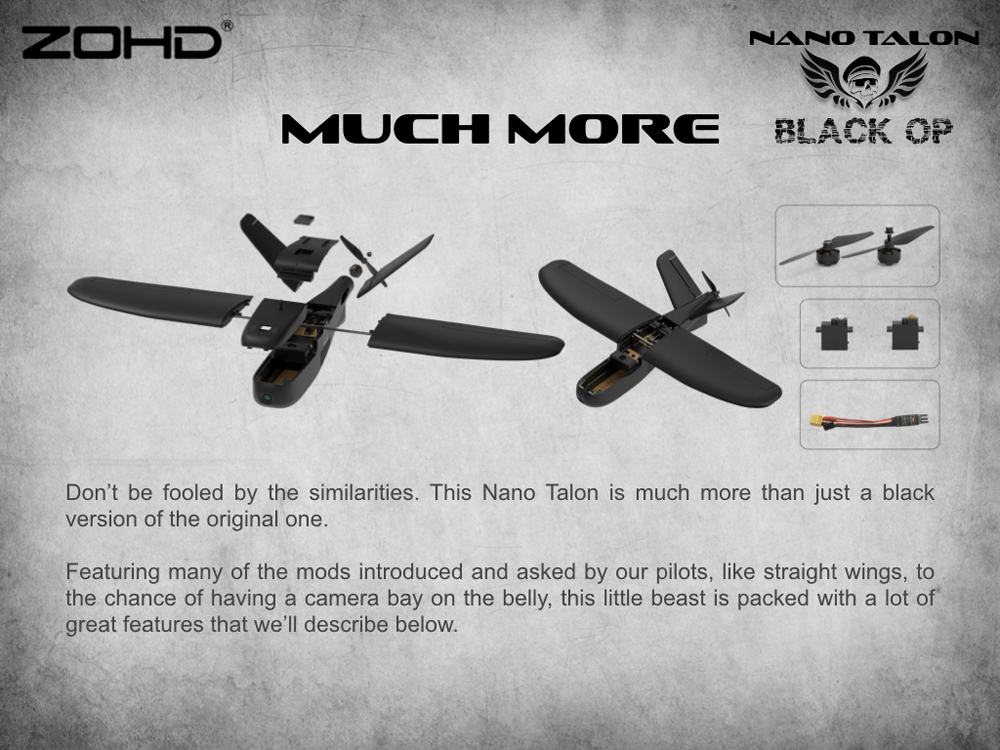

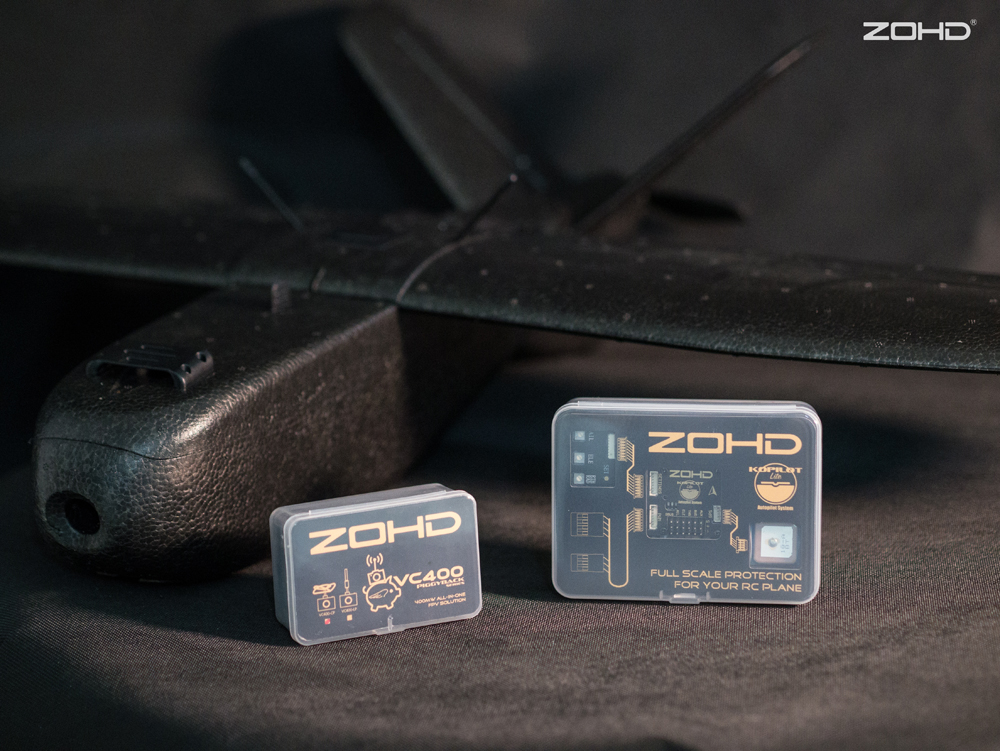

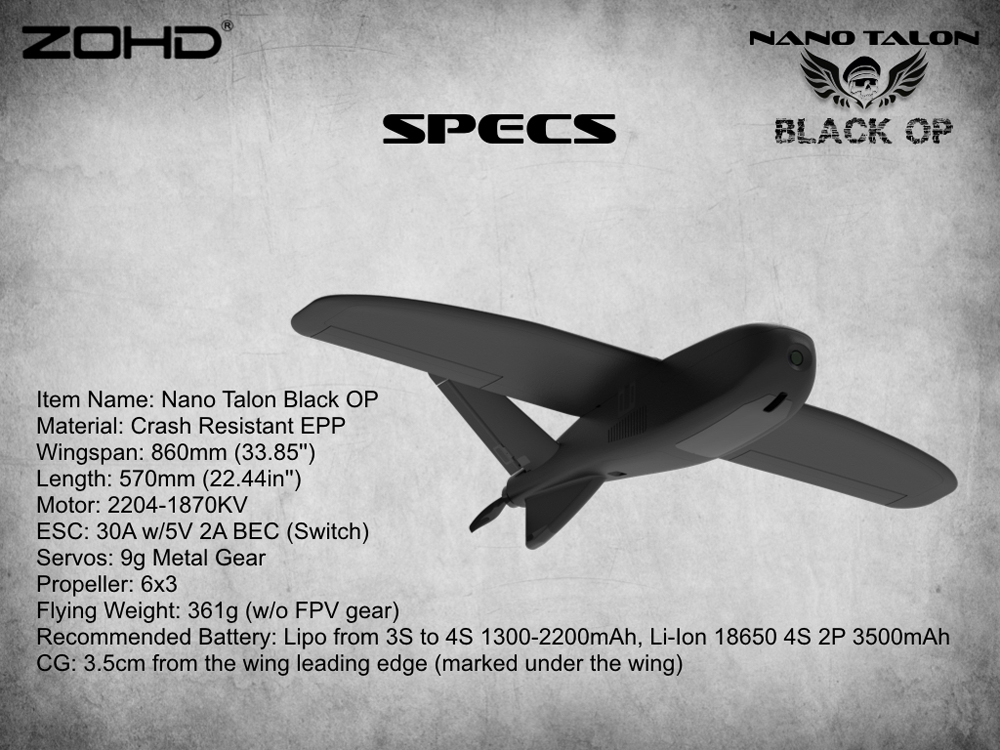

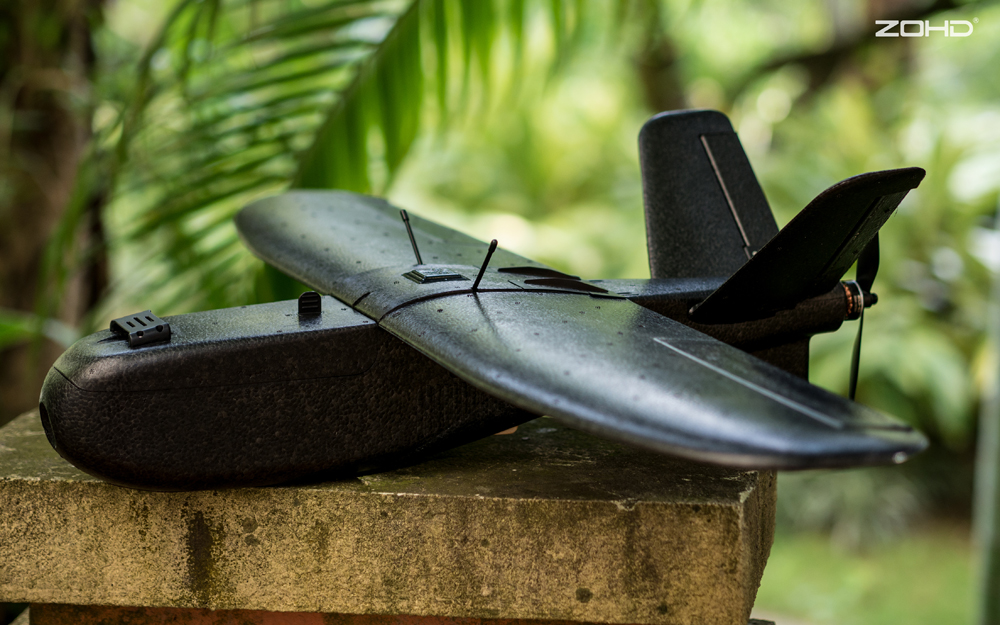

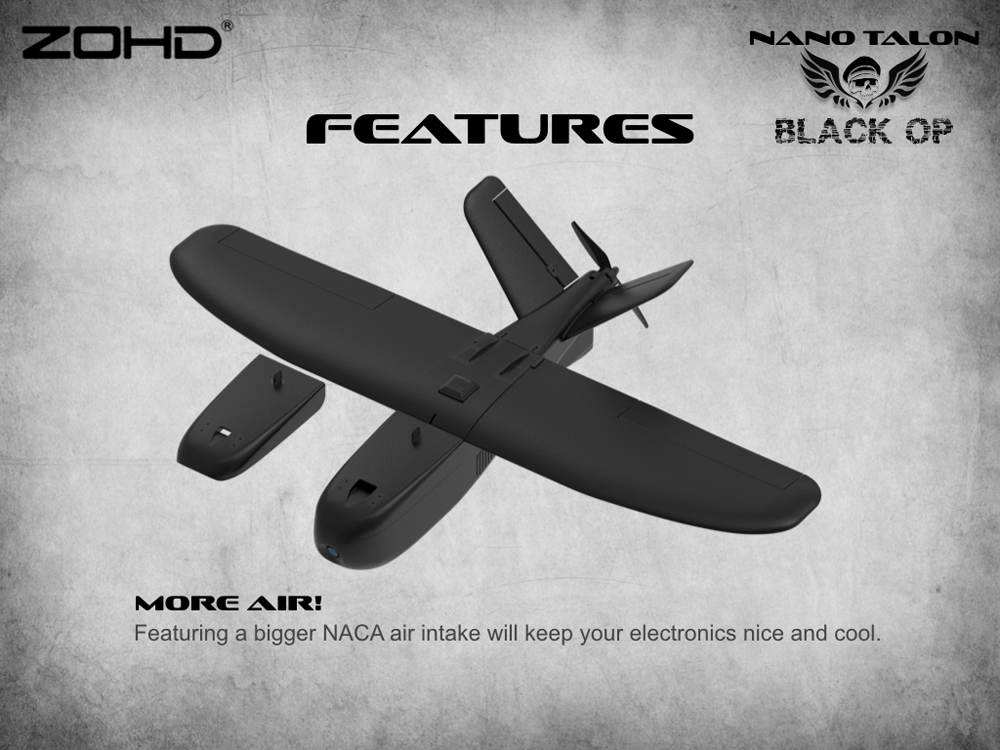

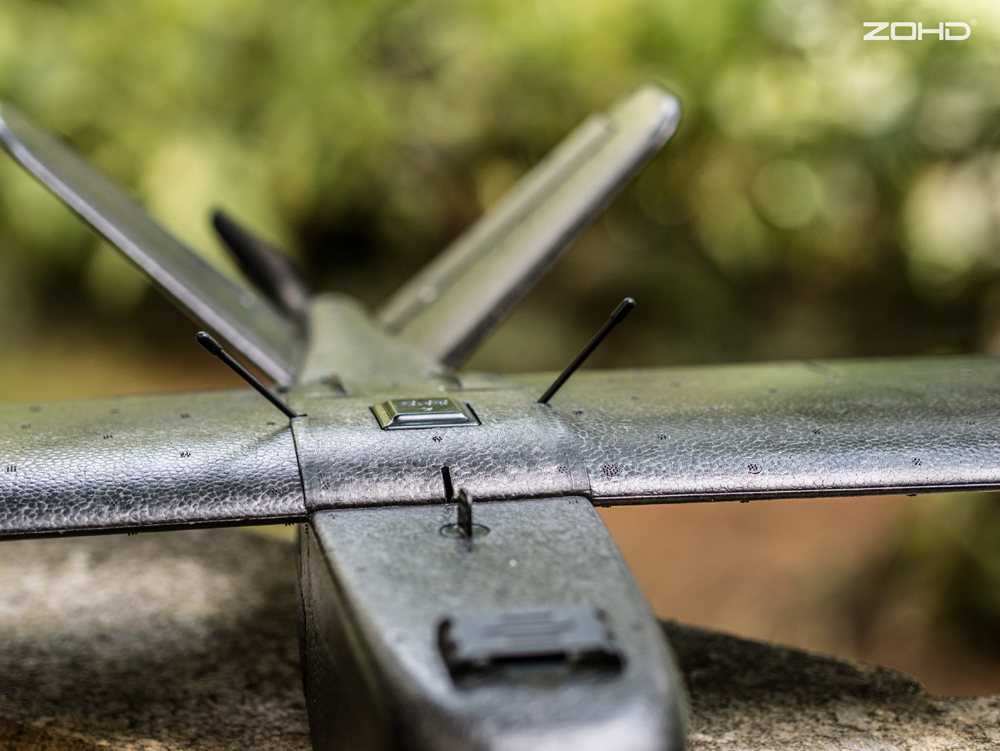

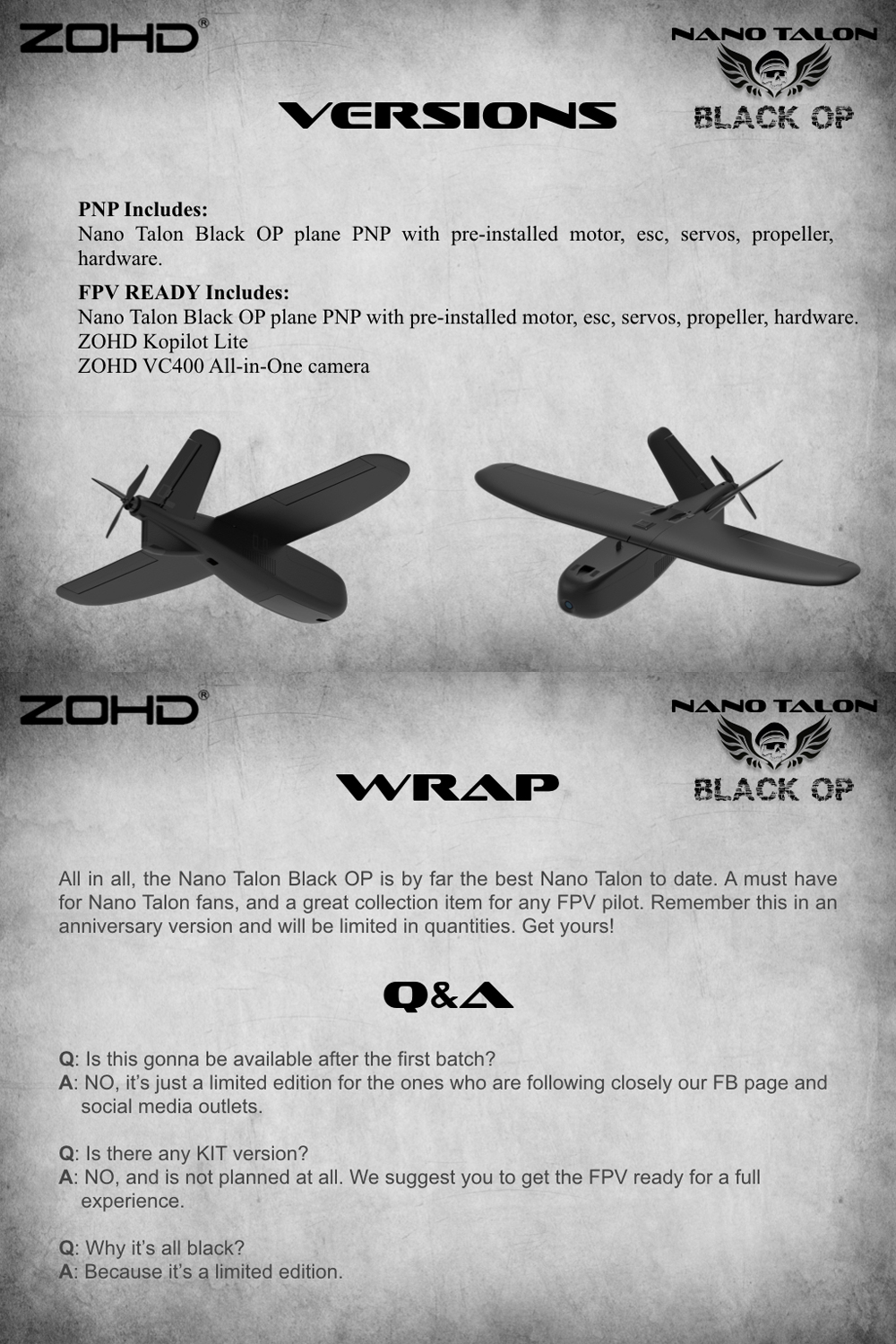

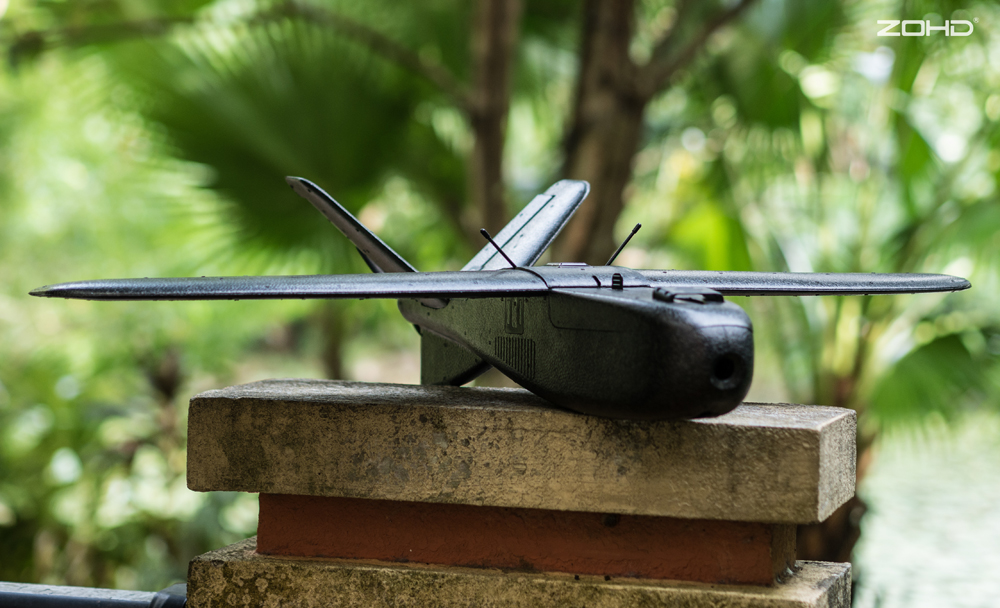

Introduce about FPV READY: Nano Talon Black OP plane PNP with ZOHD Kopilot Lite Flight Controller and ZOHD VC400 All-in-one Video Camera (CP Antenna).
Description of VC400 PIGGYBACK AIO NTSC FPV Camera (CP Antenna)
Input voltage: 7-28V
Frequency band: 5.8GHZ
Video format: NTSC
Camera resolution: 600TVL
Antenna connector: Clover / Dipole
Field of View: 120 degrees
Output power: 0.1mW / 25mW / 200mW / 400mW
Operating current: 90mA (0.1mW) 150mA (25mW) 270mA (200mW) 360mA (400mW)
Product Weight: 8g
Product Size(L x W x H): 24 x 15 x 10mm
* 3-in-1 AIO integrated design, with camera, VTx and antenna, ultra-light weight and small size, best solution for light-weight airplanes.
* With OSD to show Power-on time and Input Voltage, so you can know how long you can keep flying.
* Default JST plug and up to 25cm power cable, longer enough for most small size airplanes.
* Up to 2.5km video transmission ra nge on 400mW.
* Wide voltage input from 7-28V, safe for all kinds of battery or BEC input.
* With customized ve1cro strap to hold the camera and EVA foam for anti-vibration.
* Switchable between 0.1mW / 25mW / 200mW / 400mW.
* Optional Clover / Dipole antenna for different airframes and flight mode (for straight line flights or flying around).
* 5.8Ghz VTx with 40 racing channels.
* Allows you to display customized Call Signs.
* Power cable were soldering and fixed by silica glue, solid even in a crash.
1 X VC400 AIO Camera with Lens Cover
1 X Customized Ve1cro Strap
2 X EVA Anti-vibration Foams
1 X Manual
Description of Kopilot Lite Autopilot System:
Supported planes: T-tail, V-Tail, Flying Wing/ De1ta Wing.
Supported receiver: PWM, PPM, S-Bus.
Supported mode: Home(RTH), Fence (RAD), Stabilization modes.
Servo connector: 4 connectors
Operation temperature: -10℃-50℃
Package Weight: 83g
Package Size (L x W x H):113 x 84 x 29mm
* Easy installation, minimal wiring. Super easy setup.
* Powerful stabilization and RTH algorithm.
* Return to Home (RTH) Fence (RAD) and Stabilization modes on a 3 position switch.
* Supports T-Tail, V-Tail and Flying Wing/ De1ta configurations.
* Mini-size GPS unit for ultra-light setups.
* Fast SAT lock.
* Adjustment board removable for a light-weight setup.
* Launch assistant and motor blocking for no SAT fix.
* AIL, ELE, THR, RUD + AUX to control your servs. Landing gear and flaps go straight to RX.
* Computer-free programming.
* Easy to transfer between planes.
* Completely transparent. Switch it off and use it as a mixing board only.
1 X Kopilot Mainboard
1 X Mounting Support
1 X GPS
1 X Adjustment Board
1 X Double-side Tape
1 X Screw Driver
1 X Manual
