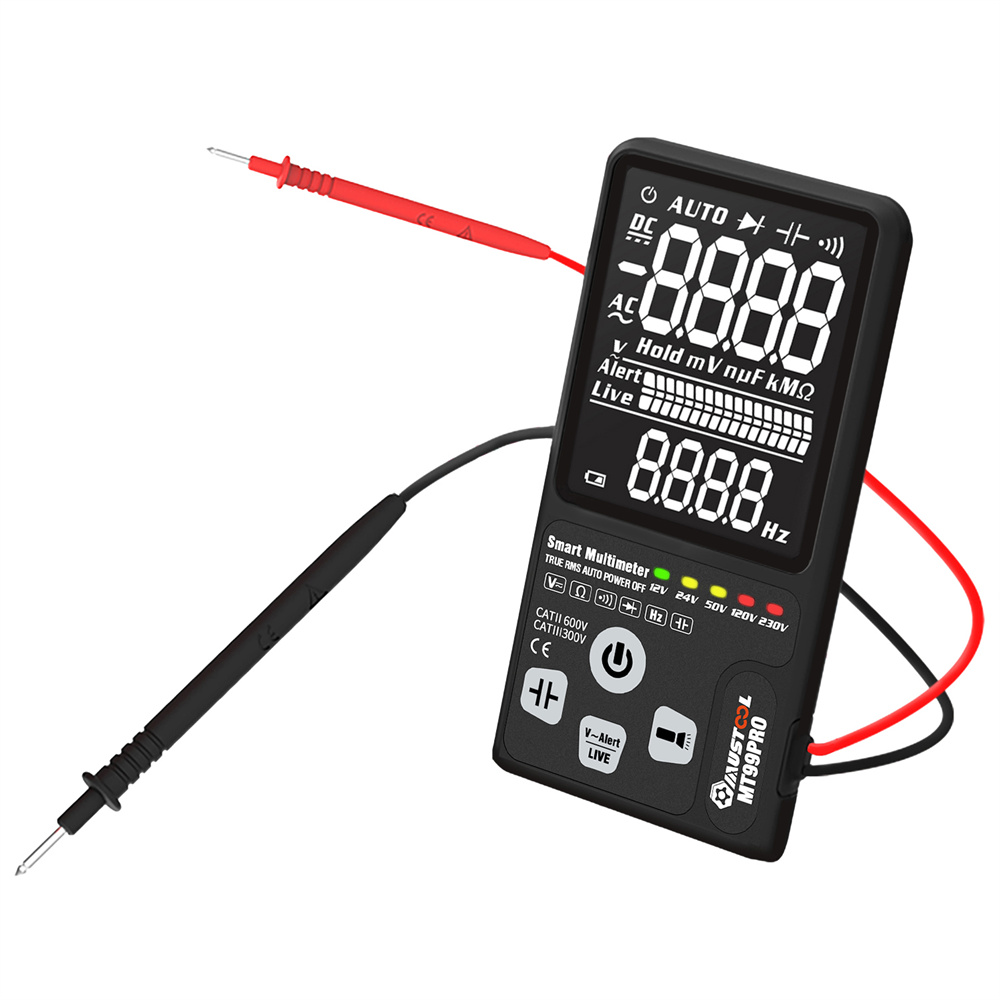

MUSTOOL MT99PRO Dual Mode Voltage Detection Intelligent True RMS Multimeter Voltage Detect Indicator Fully Auto-Range with Ultra-large EBTN LCD Screen

Product #: 89637
Price:
Stock:
In Stock
Store:
Banggood.com

Reviews:
Are you worried about choosing a multimeter as a gift?

For your elders who do some diy regularly.
For your friends who is a electrician or profession.
For your child who is a student or go to school soon.

Please have a look our product - MUSTOOL MT99pro The highest appearance value smart multimeter until now !!!

1. High EBTN LCD large screen design
2. The world's fastest capacitance measurement speed
3. The resistance measurement range is 1Ω-10MΩ;
4. Maximum display value: 9999;
5. Automatic identification and capacitance ,diode measurement
6. Multimeter + voltage detector 2 in 1: Indicates the AC and DC voltage test value, indicating NCV, indicating Live line

Features:

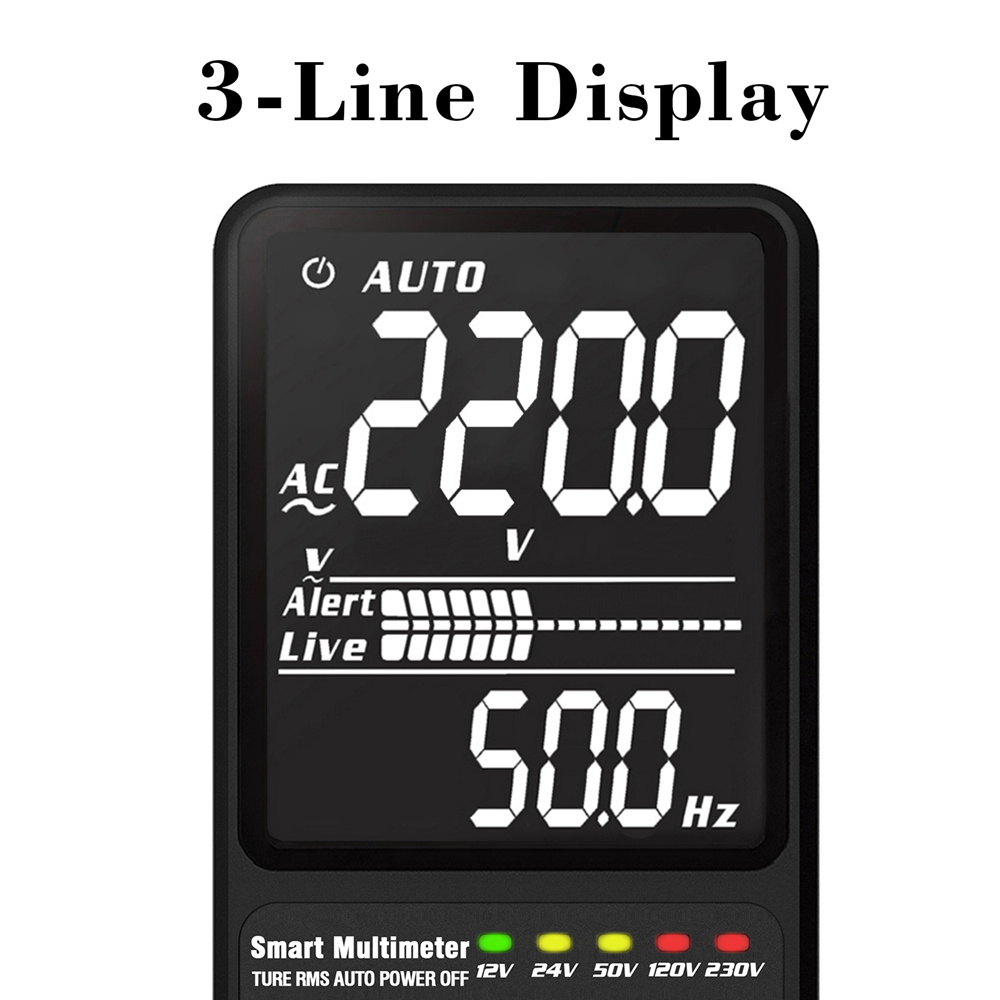

1. Ultra-large EBTN LCD, 3-line display, can show 3 test results on the screen, such as voltage, frequency and analog bar

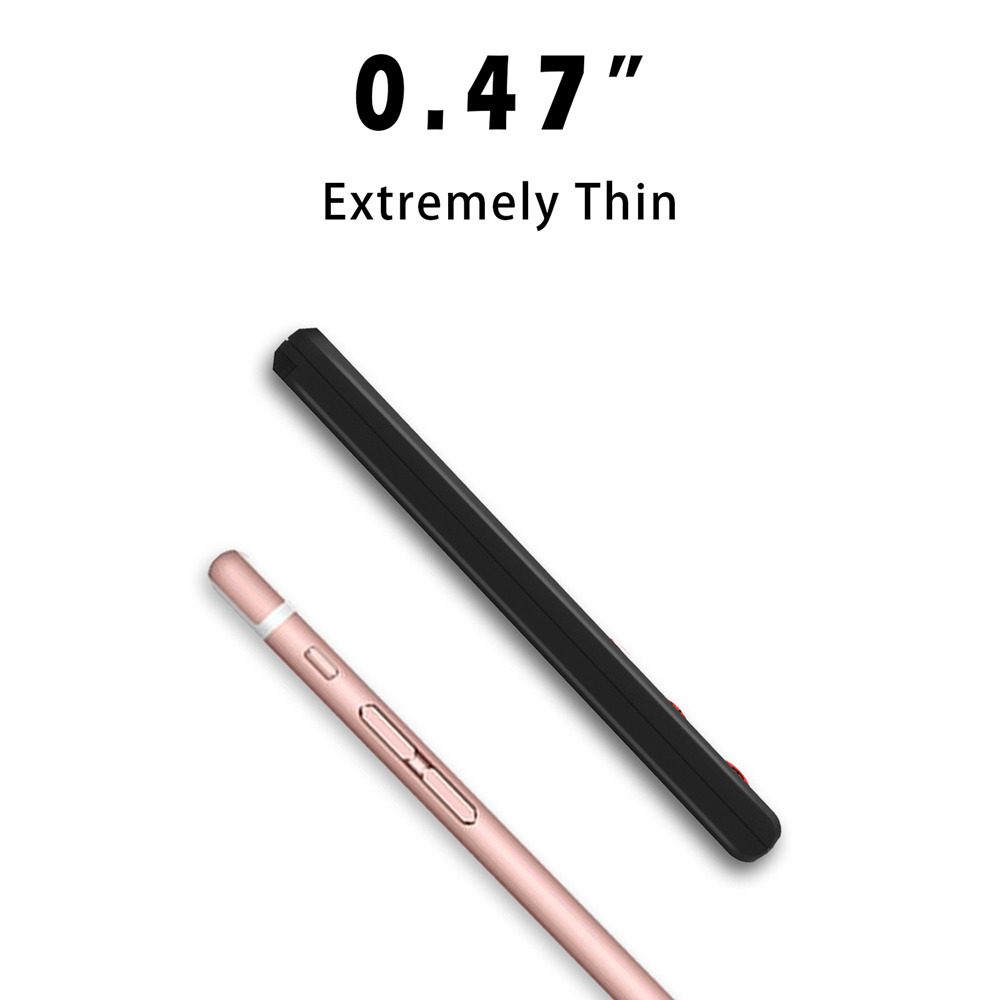

2. Ultra-thin body, portable hanging hole, comfortable operation and easy to carry

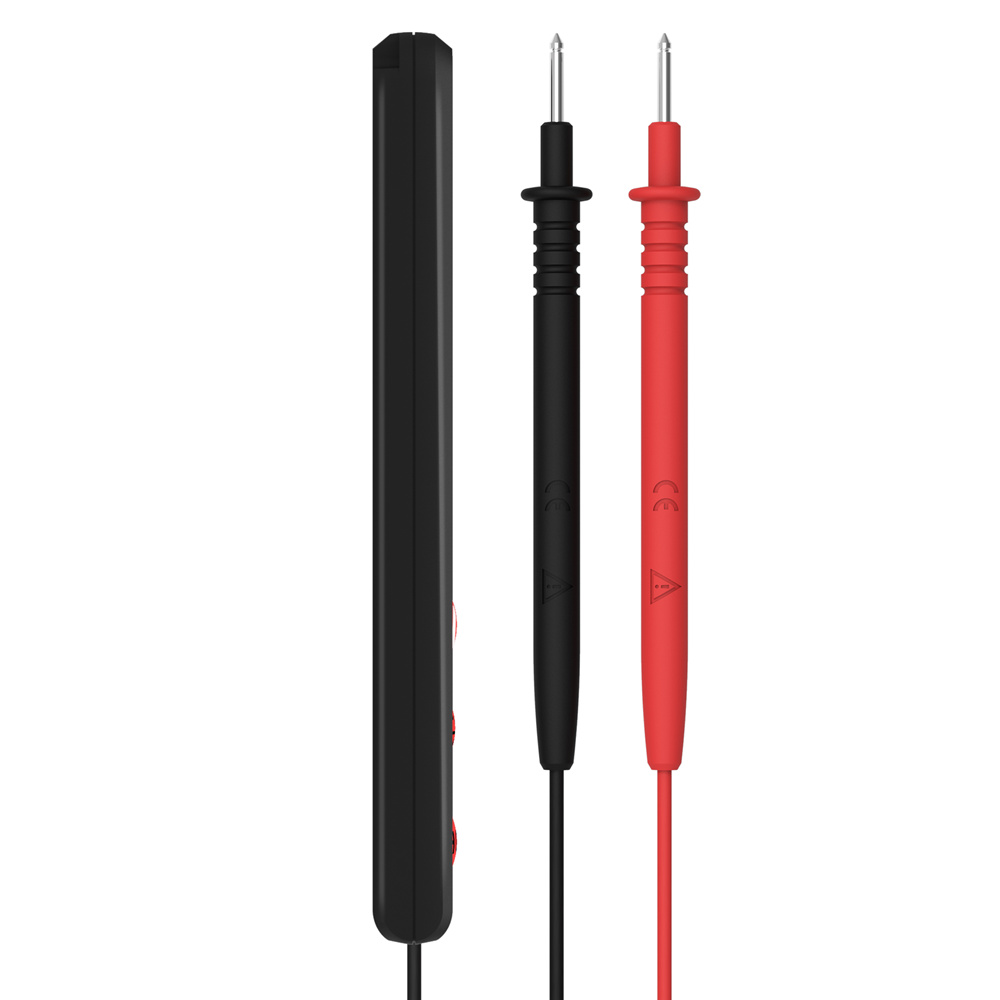

3. Unibody test leads design, one step to test, no need to plug and pull

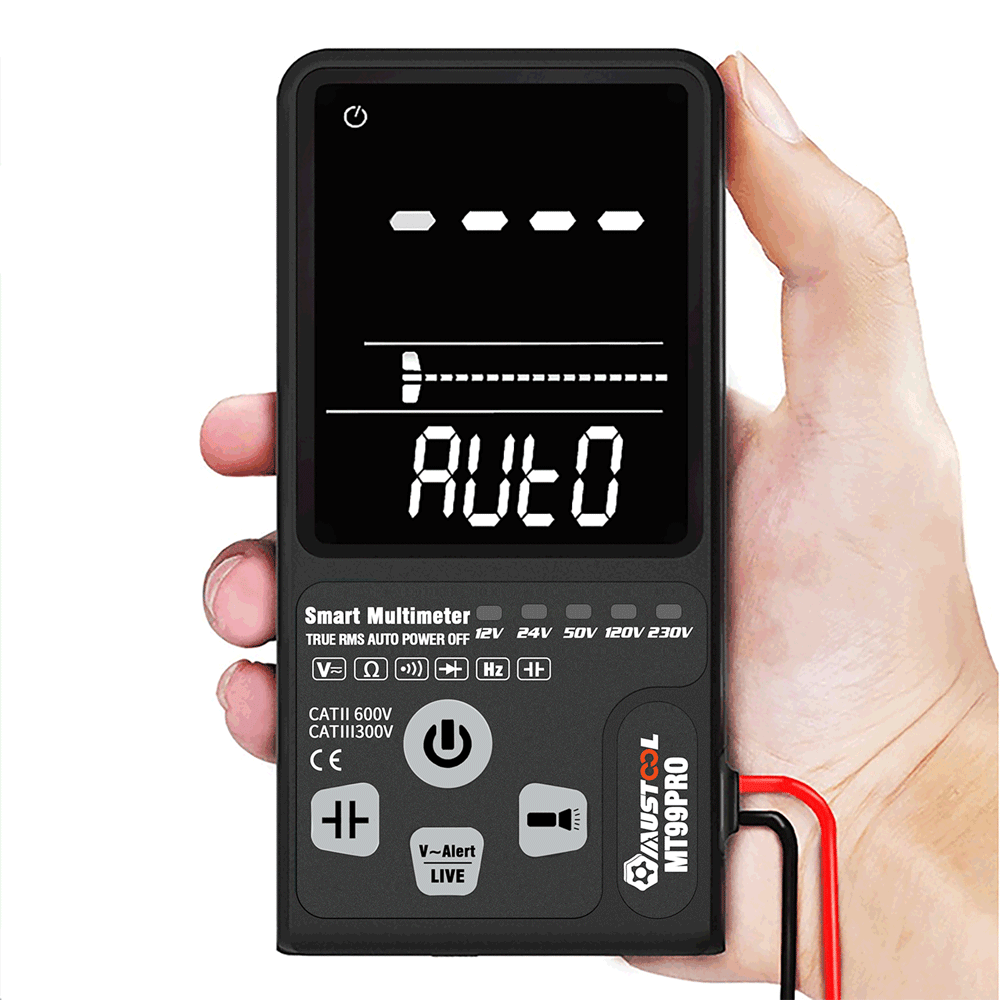

4. Singe button to start smart identification function, no need to switch gear, say goodbye to cumbersome operation

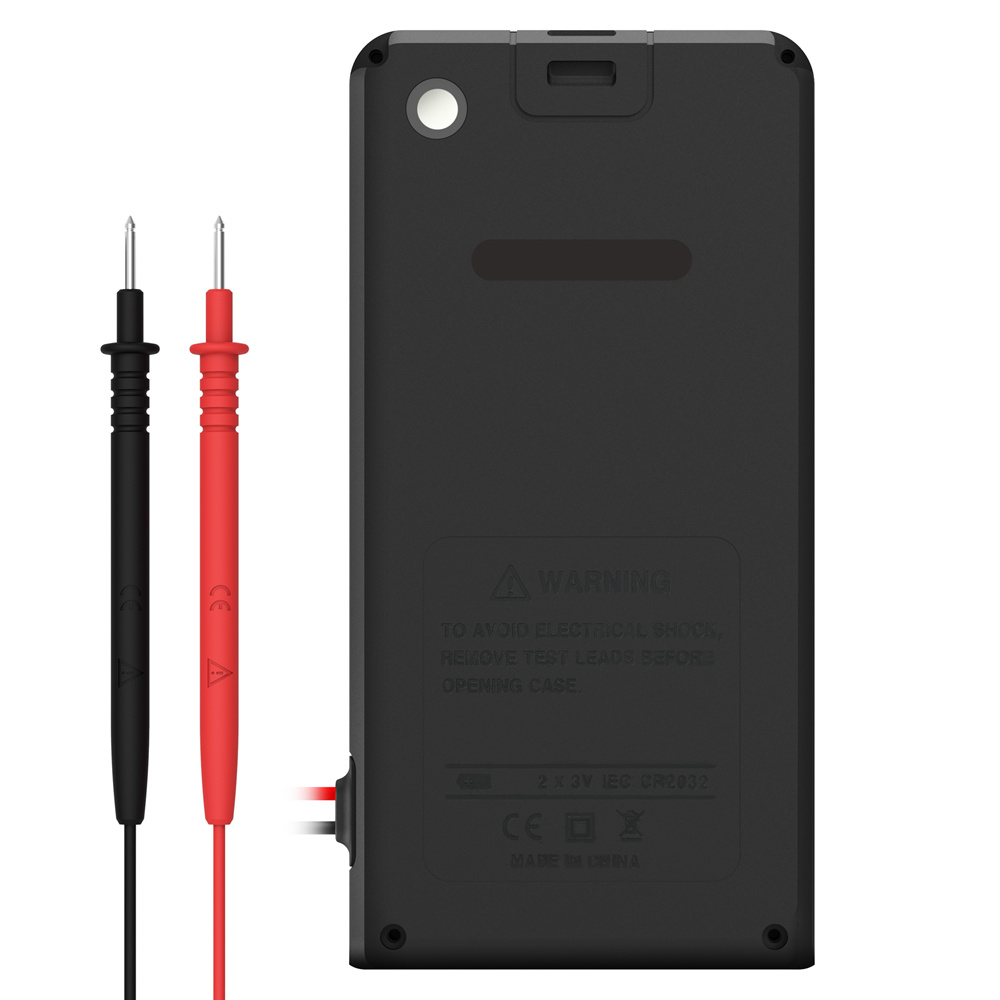

5. Back flashlight design, no fear of dark environment
6. AC and DC voltage test
7. Resistance, continuity
8. Data hold, automatic power off
6. Frequency test

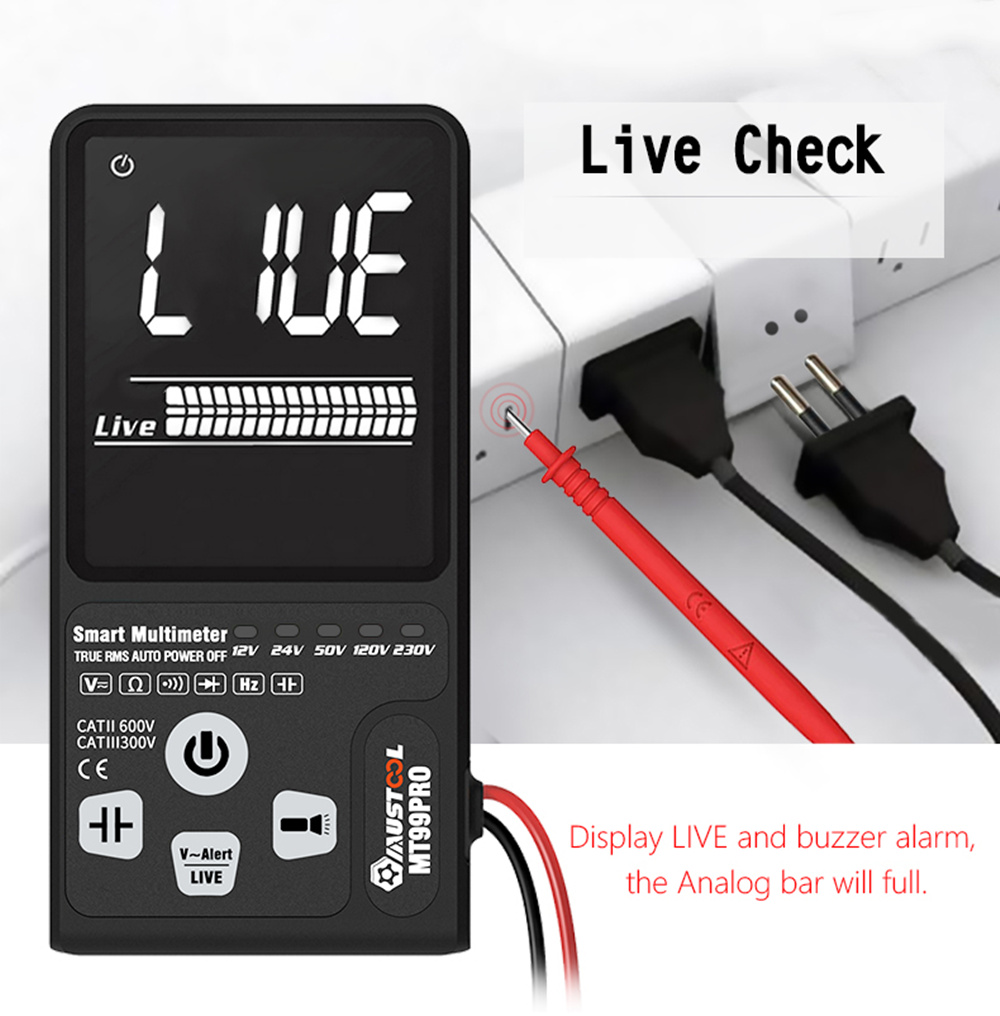

8. LIVE: neutral and live wire judgment (live wire check)

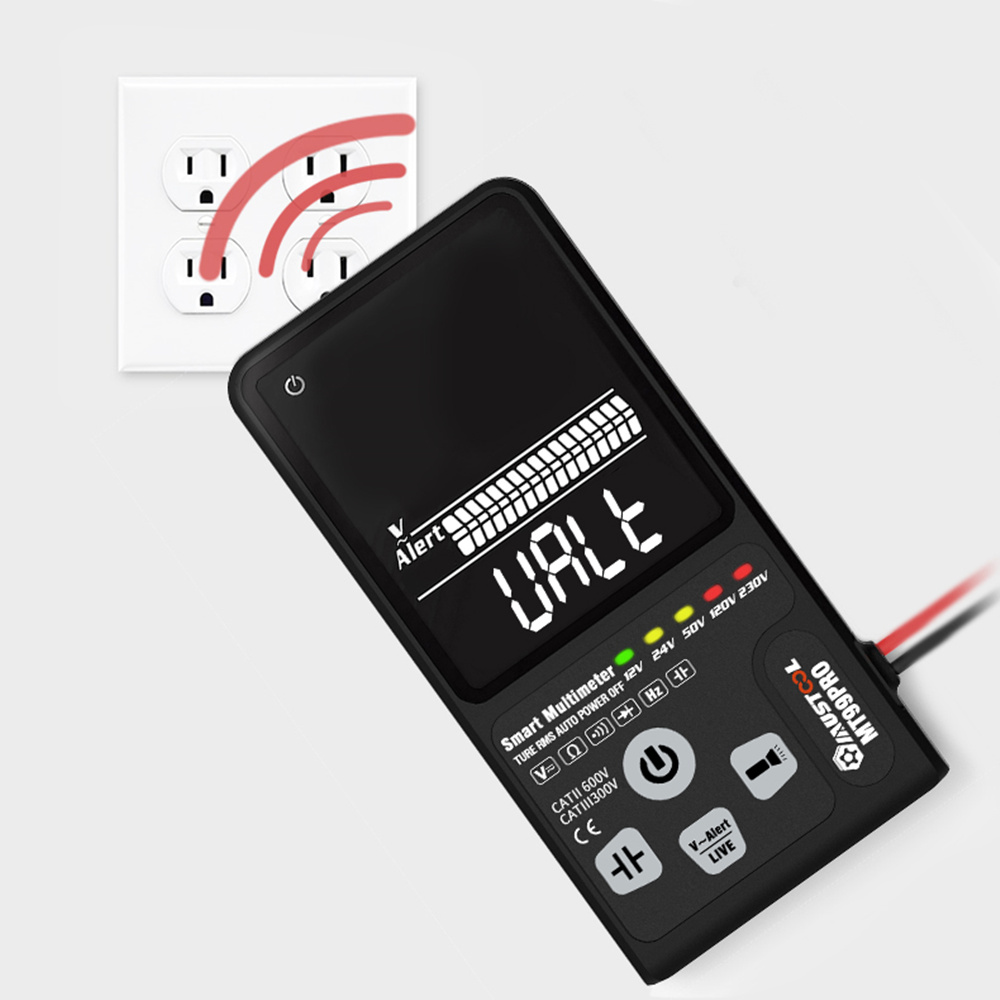

10.V~alert: dangerous voltage alarm (non-contact voltage detection)
11.TRUE RMS: True RMS
12. Automatically identify diode and continuity
13. Capacitance test
14.Fastest measurement speed,especially for testing Capacitance.
15.Increased dangerous voltage detection, zero-fire line discrimination, automatic, AC and DC voltage, resistance, on-off,
The functions of the voltage detection instrument are available.

Specifications:

Automatic measuring range.
Full measuring range overload protection.
Maximum voltage allowed at the measuring: 600V DC or 600AC(RMS)
Work height: maximum 2000m
Display : LCD
Maximum display value: 9999 digits
Polarity indication : Self-indicating, " -"means Negative polarity
Over-range display: "0L" or "-0L"
Sampling time : The meter figures show about 0.4 seconds
Unit display : Function and battery unit display
Automatic Power off time: 3 minutes
Operational power: CR2032 x 2 battery
Battery low voltage indication: LCD display a low Battery symbol
Temperature coefficient: Less than 0.1 x Accuracy / °C
Operational temperature and humidity :0~40°C/32~104°F
 ,45%-80%RH
Storage temperature and humidity : -10 - 60 °C/-4 - 140°F, 45%-80%RH
Boundary dimension : 136x67x12mm
Weight: 110g
Backlight: TN screen version short press the light button to turn on the backlight / VA screen version with automatic wake-up, 15 seconds automatic standby mode.

Range Explanation
Low-range Green Voltage Signal indicators.The screen displays 1/3 analog bar,the buzzer
sounds a slow alarm.
Mid-range Yellow voltage signal indicators.The Screen displays 2/3 analog bar,the buzzer
sounds a quick alarm.
High-range Red voltage signal indicator.The screen displays full analog bar,the buzzer
sounds a very loud alarm.

DC Voltage 600V/0.1V ±(0.8%+3) min input voltage:0.5V
max input voltage:600V
input impedance:10M
AC Voltage 600V/0.1V ±(1.2%+5) min input voltage:1V
max input voltage:600V
input impedance:10M
Resistance 1Ω-10MΩ (1.2%+3) Overload protection 250V AC/DC
Capacitance 1000uF/0.1uF (3.5%+8) Minimum measurement capacitance 0.5uF
Overload protection 250V AC/DC
6000uF/1uF (4.5%+10)
Frequency 10HZ-1000HZ (2%+10) RMS above ACV1V
Maximum display value 9999
Automatic shutdown
Flashlight
Diode less than 1.0V diode automatic identification
Buzzer
NCV
(Non-contact voltage detection)
live wire check
Undervoltage warning


Package includes:

1 x Smart Digital Multimeter
1 x Test Lead
1 x User Manual
MUSTOOL MT99PRO Dual Mode Voltage Detection Intelligent True RMS Multimeter Voltage Detect Indicator Fully Auto-Range with Ultra-large EBTN LCD Screen

Details Pictures:
