FMS Reflex Gyro System Flight Controller for 1220mm Ranger/1200mm Super EZ V4/1700mm PA-18/850mm Flash/800mm T-28 V2

Product #: 93177
Price:
Stock:
In Stock
Store:
Banggood.com

Reviews:

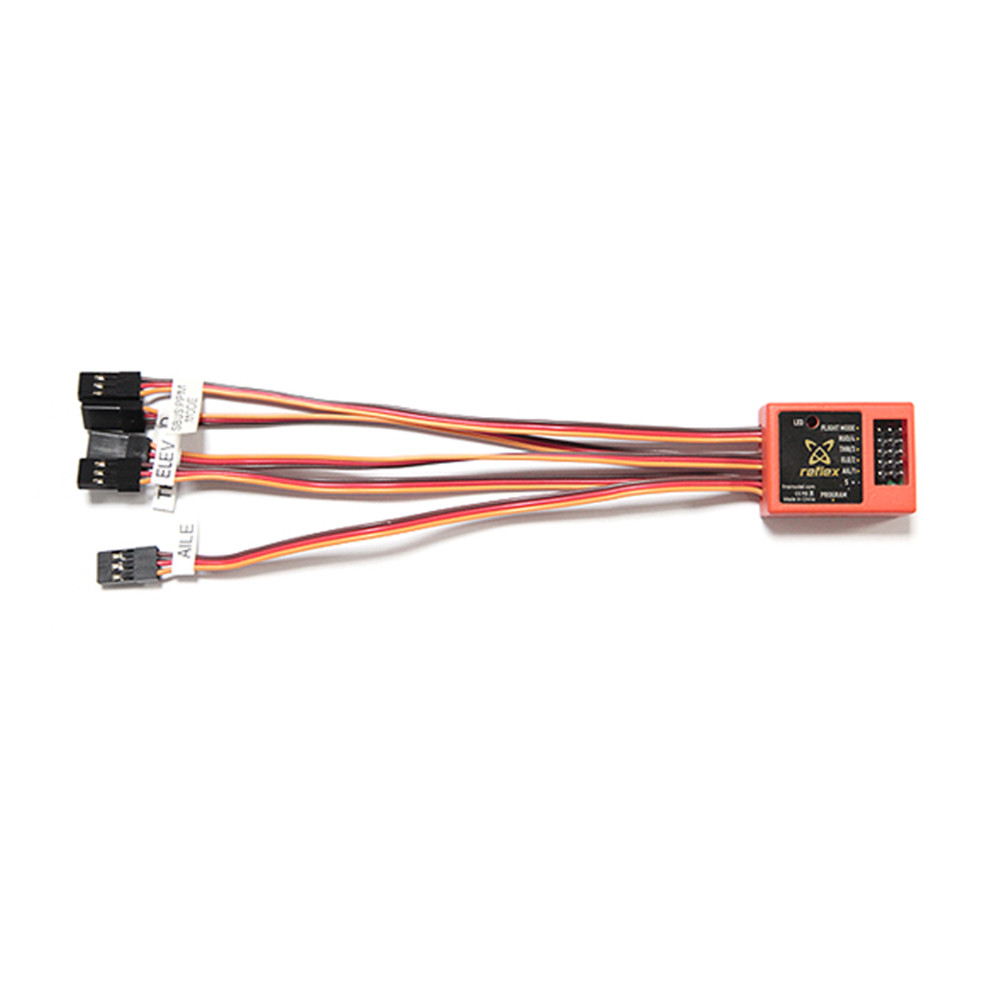

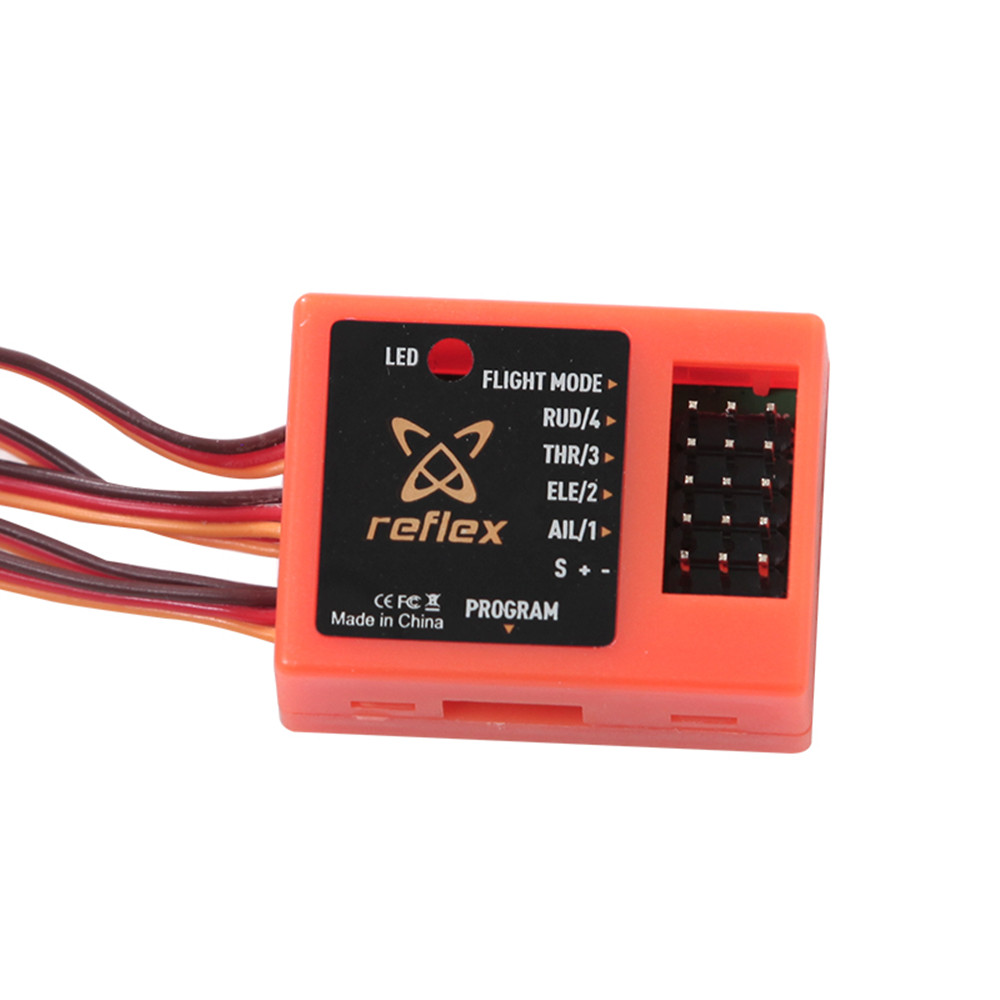

The Reflex system - an advanced flight control module designed to provide electronic stabilization while retaining natural flight characteristics.
Using both PPM and SBus inputs, the Reflex system functions natively with your favorite radio setup. Assigned to any 3 channel switch,
Reflex could be switched between Stabilized, Optimized or OFF modes- allowing pilots to always be in control.


The FMS Reflex system is programmed specifically for the aircraft it is connected to. No further programming is needed. The user only needs to connect their receiver to the gyro and setup the aircraft normally.
3 flight modes are available: Stabilized, Optimized or off. This is controlled with a 2 or 3 position switch on the transmitter. When assigned to a 2 position switch, the Reflex system switches between stabilized and optimized modes. If the transmitter does not have adequate auxiliary channels, the included jumper should be used to change the control mode of the Reflex system.
- Utilizes a high-speed 32-bit ARM processor onboard.
- 3 axis gyro and 3 axis accelerometer.
- 3 flight modes are available: Stabilized, Optimized or off.

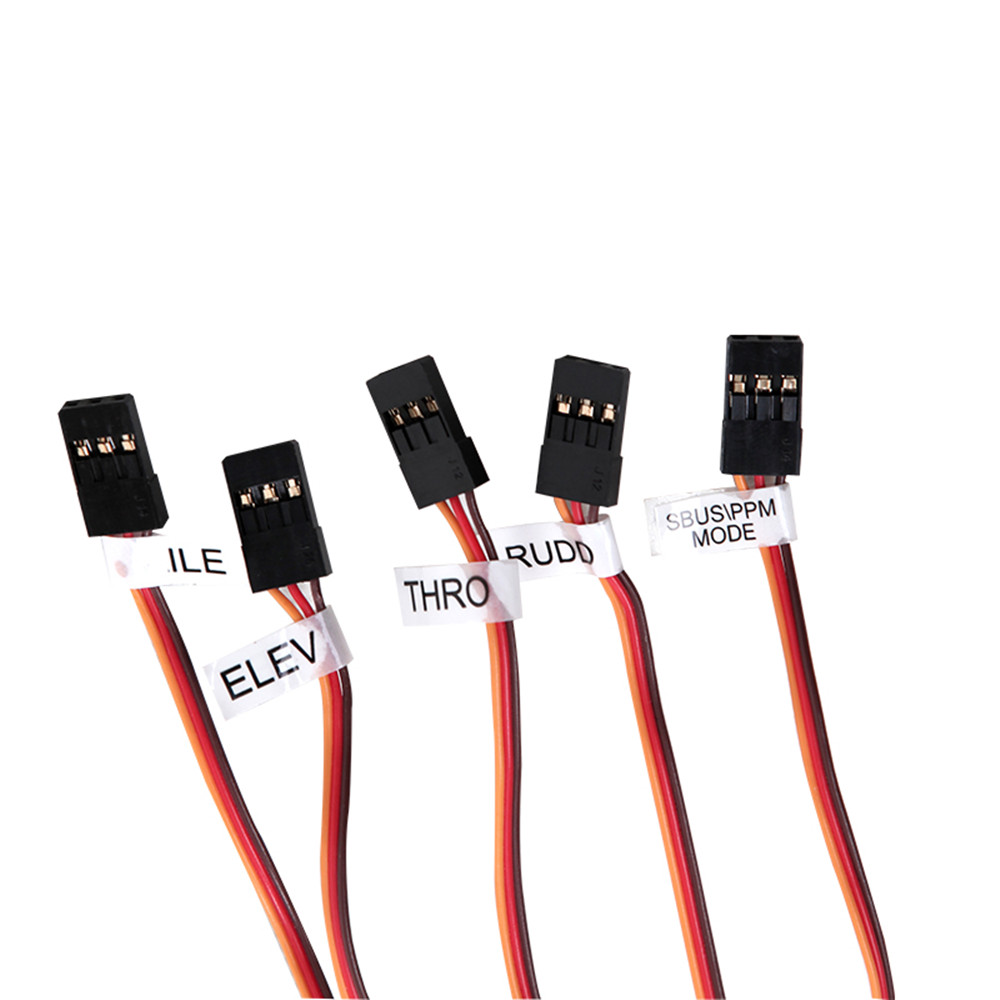

- Automatically recognizes SBUS/PPM/PWM systems, compatible with all radio systems with 4 channels or above.
- Easy operation.

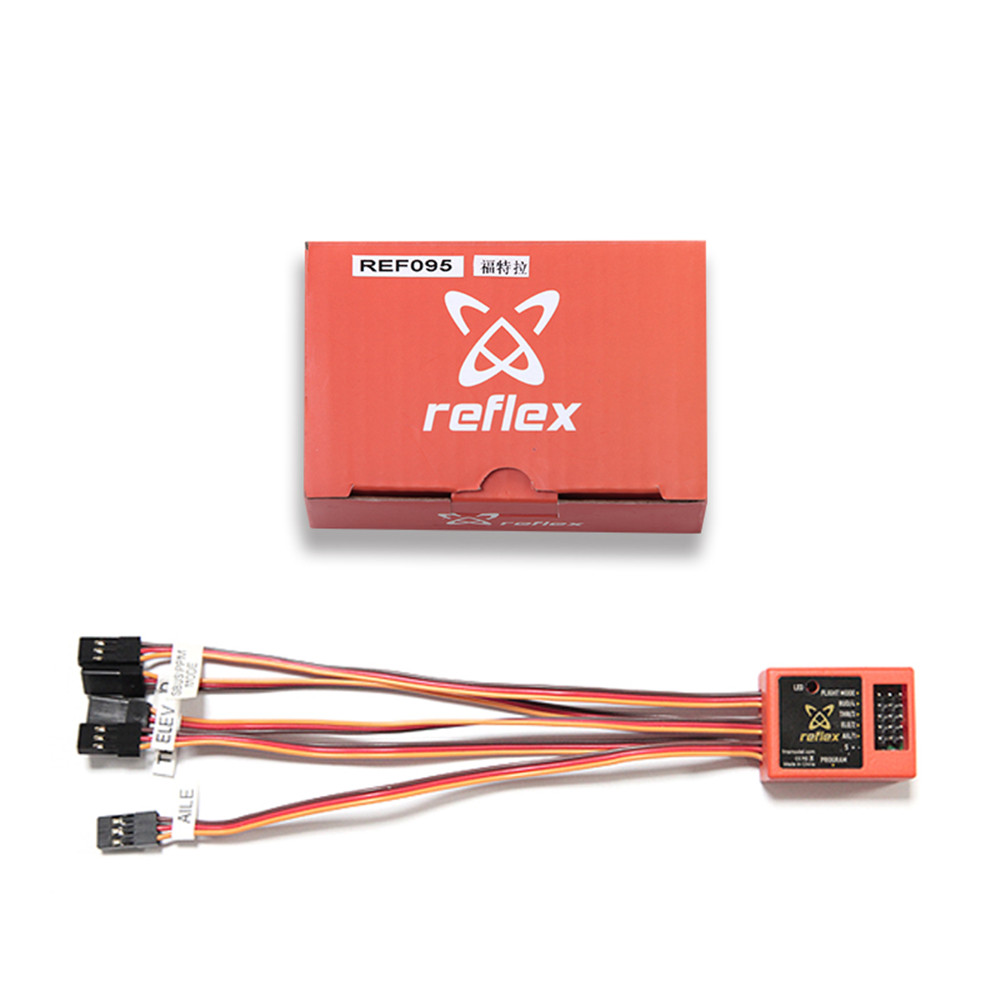

Package included:
1 x FMS Reflex Gyro System Flight Controller for 1200mm Ranger/1200mm Super EZ V4/1700mm PA-18/80mm Futura/80mm F4/850mm Flash/800mm T-28V2/750mm Edge540/70mm A-10V2/800mm F4U/2000mm BEAVER V2
