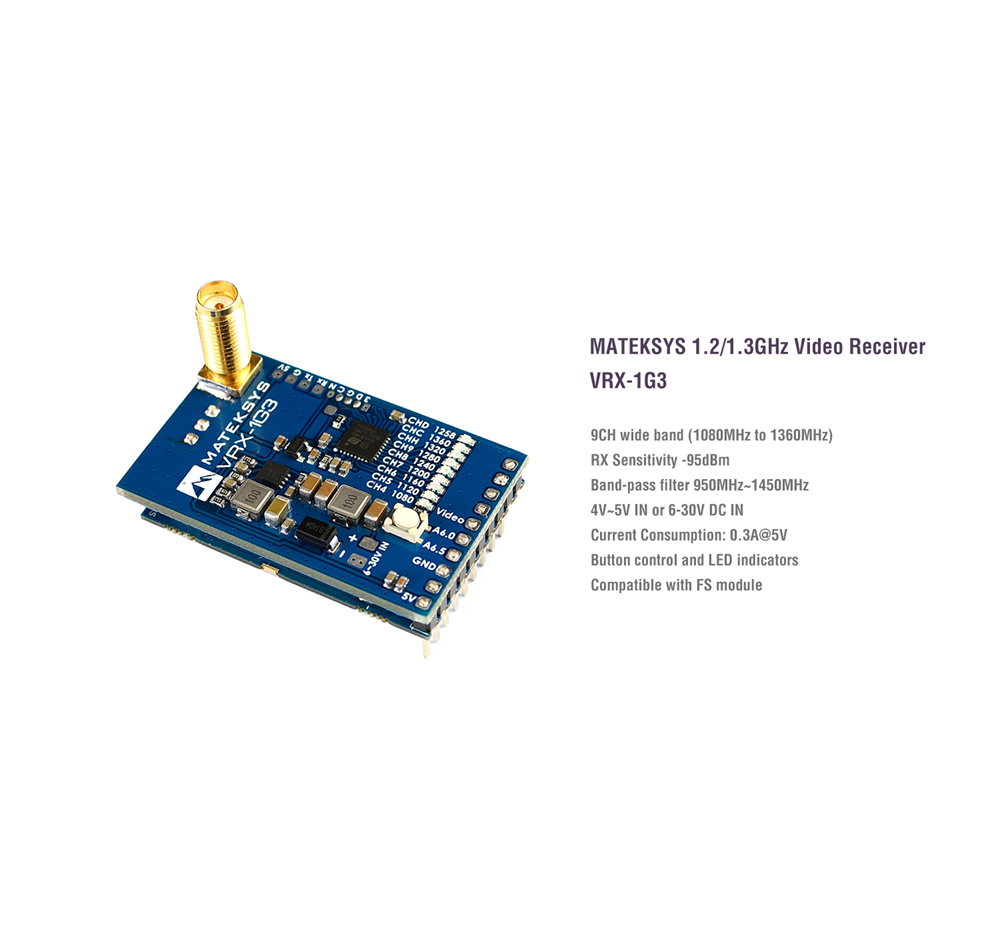

MATEKSYS VRX-1G3 1.2Ghz 1.3Ghz 9CH FPV Video Receiver for RC Drone Goggles Monitor

Product #: 90464
Price:
Stock:
In Stock
Store:
Banggood.com

Reviews:
MATEKSYS VRX-1G3 1.2Ghz 1.3Ghz 9CH FPV Video Receiver for RC Drone Goggles Monitor

Features & Specifications
Receiving frequency: 9CH  (1080MHz to 1360MHz)
RX Sensitivity: -95dBm
Band-pass filter 950MHz~1450MHz

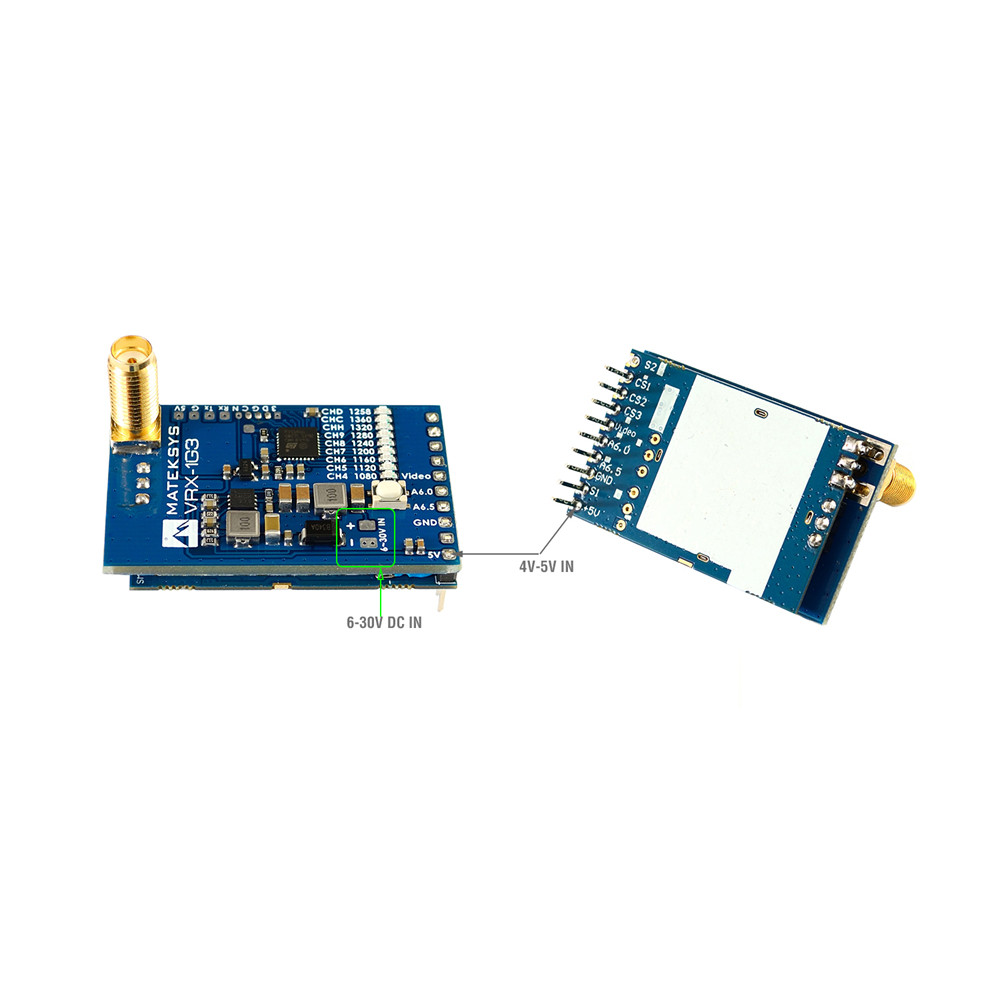

Dual input options: 4~5V via pins  or 6-30V via pads
Button control and LED indicators
On board regulator output: 5V 2A @ input voltage 6~30V
Current Consumption: 0.3A @5V
Video format: NTSC or PAL
Video Output impedance: 75Ω, Typ.
Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
ANT. input impedance: 50Ω, Typ.
RF Connector: SMA
Weight: 14g ( w/o antanna)

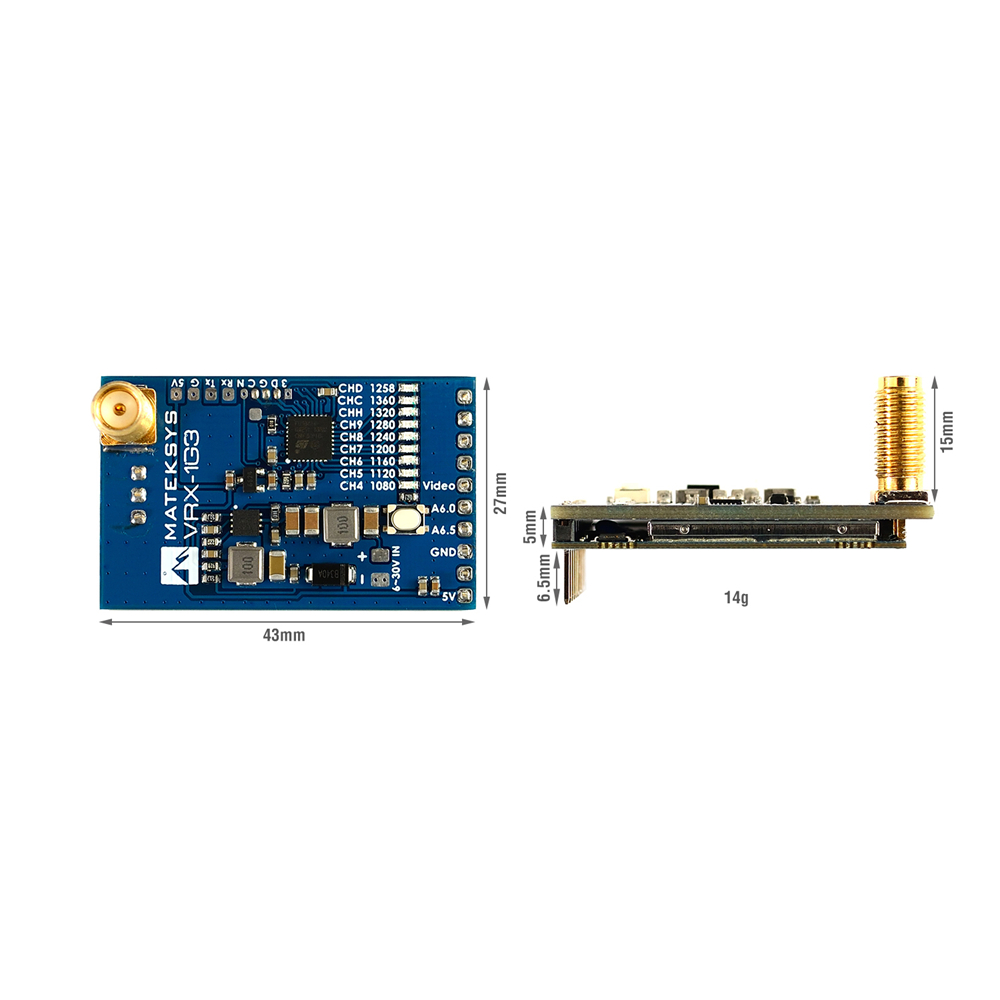

Size: board 43*27mm
2.54mm pins and PCB size are compatible with FS module


Settings
Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
Press the button to select the frequency
When the LED blinks at new frequency,  RF input is enabled on this frequency.
New frequency will be saved if no button action within 3 seconds

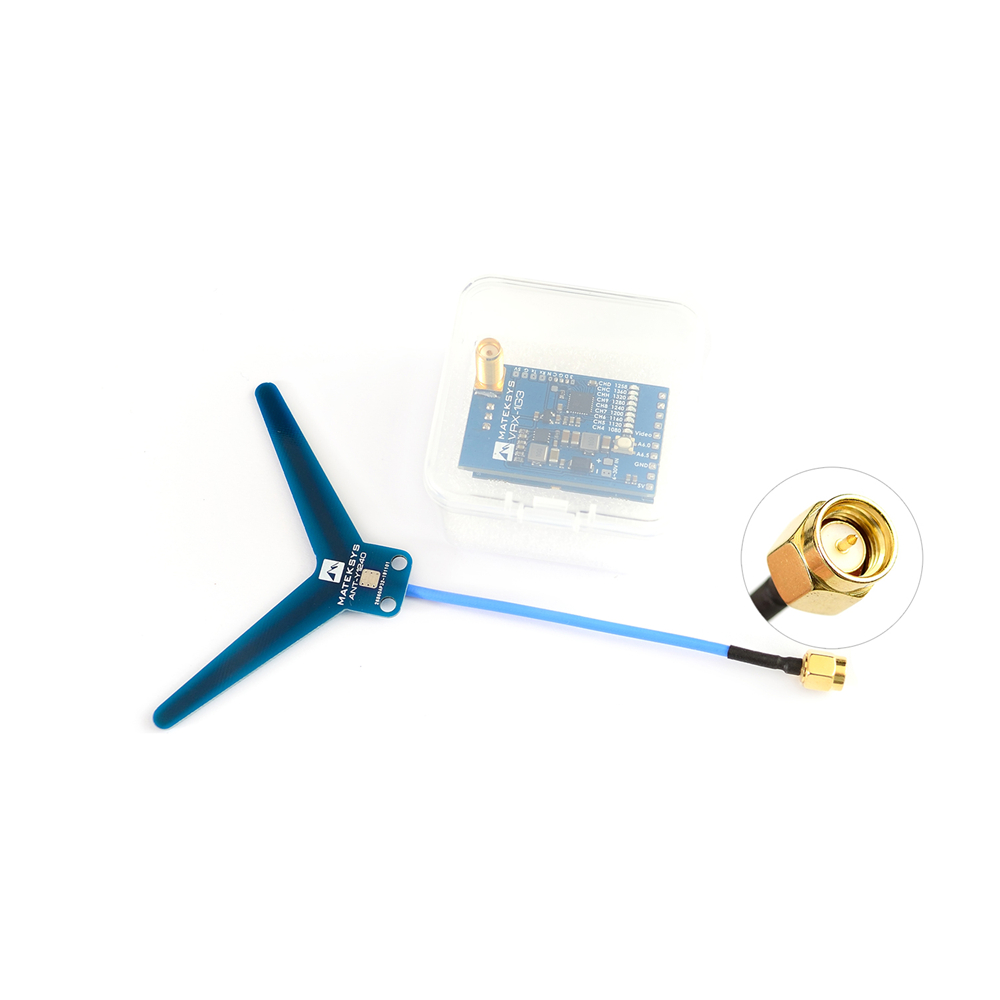

Package Included
1 x 1.2/1.3G Video receiver VRX-1G3

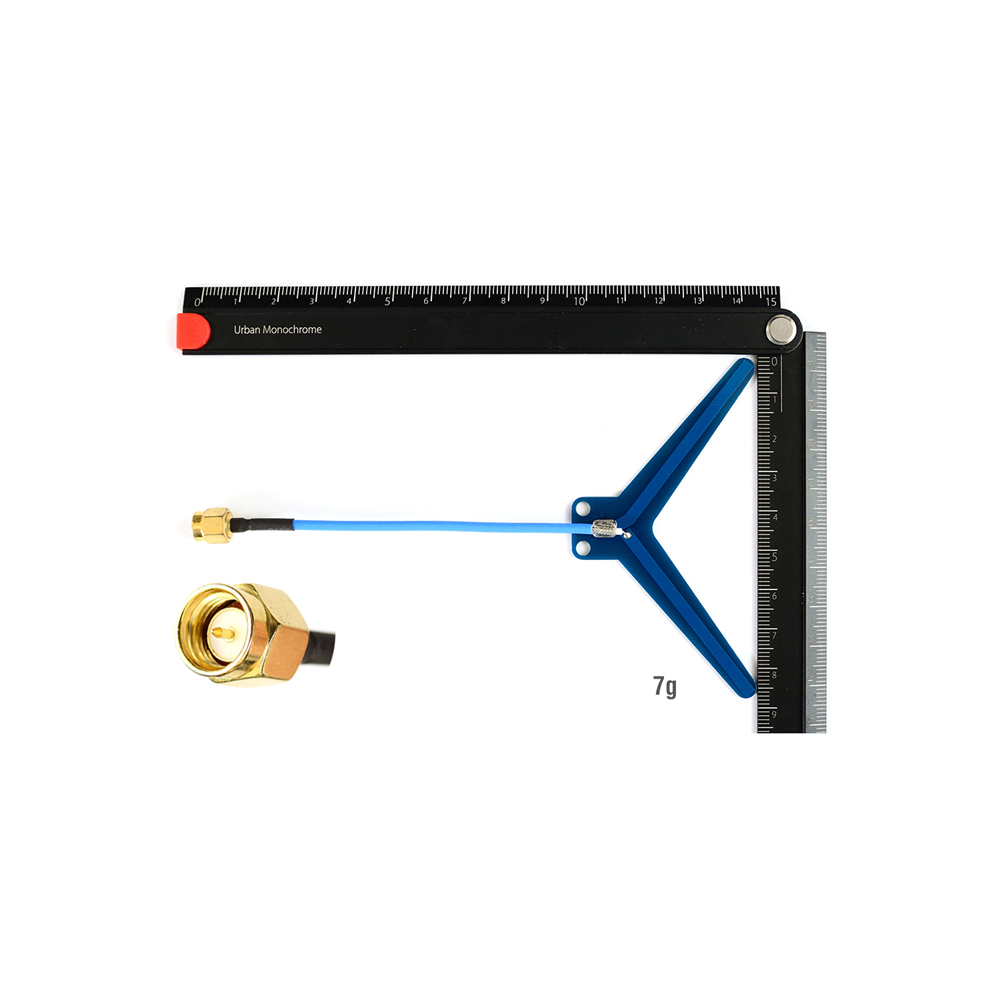

1 x Dipole antenna_SMA, center freq 1240MHz
