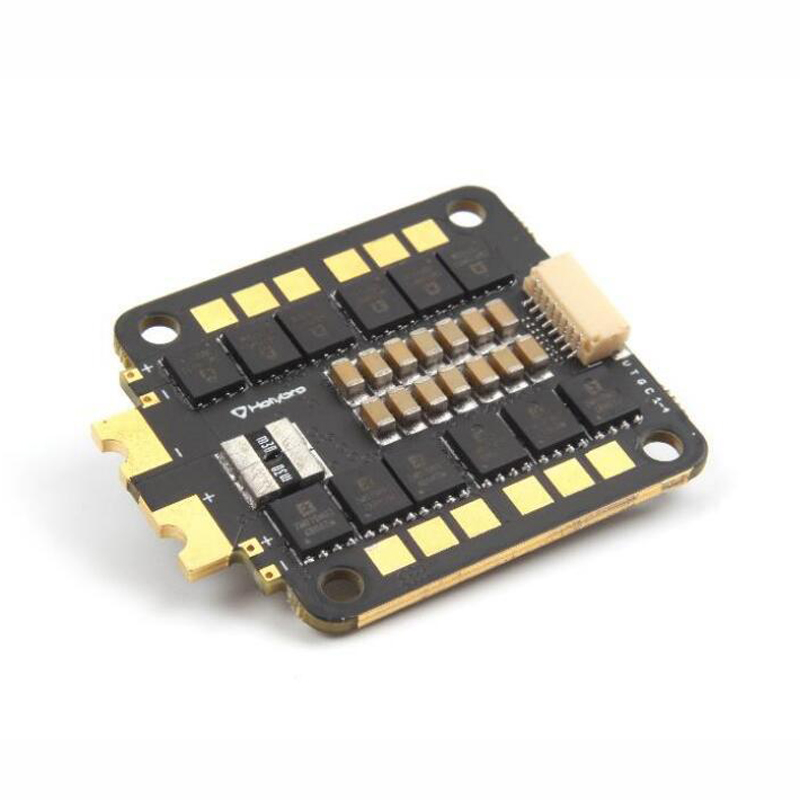

Holybro Tekko32 F3 HDV 40A Blheli_32 3-6S 4 In 1 Brushless ESC 30.5X30.5MM for RC Drone

Product #: 86257
Price:
Stock:
In Stock
Store:
Banggood.com

Reviews:

New BLHELI32 ESC with F3 MCU, give more smooth control and faster responding speed. Supports up to 55A burst and 40A continued.

Specification:

32bit ESC with BLHELI32 firmware
Supports 3-6S lipo input
PWM input, TLM supported
Voltage output (VBAT)
NO BEC
Supports oneshot / Multishot / Dshot PWM
Mounting holes 30.5x30.5mm
Supports damped light
F3 MCU, runs double faster than F051
Extra Cap needed for high current or 6s usage
Dimensions: 44x37x6mm
Weight: 11.6g

Blheli_32 ESC Firmware Overview
GitHub

Package Included:
1 x Tekko32 F3 4in1 40A ESC
1 x Electrolytic capacito: 1000uF 35v
1 x 8pin to 8pin 1mm pitch 65mm cable
1 x 8pin to 8pin 1mm pitch 25mm cable
