Adjustable PWM Pulse Sine Wave Current Voltage Analog Simulator 2-10V 4-20mA Signal Generator Sources Built-in Battery

Product #: 93096
Price:
Stock:
In Stock
Store:
Banggood.com

Reviews:
Descriptions:

Power supply voltage: USB 5V (can work continuously for 8 hours when the built-in battery is fully charged)

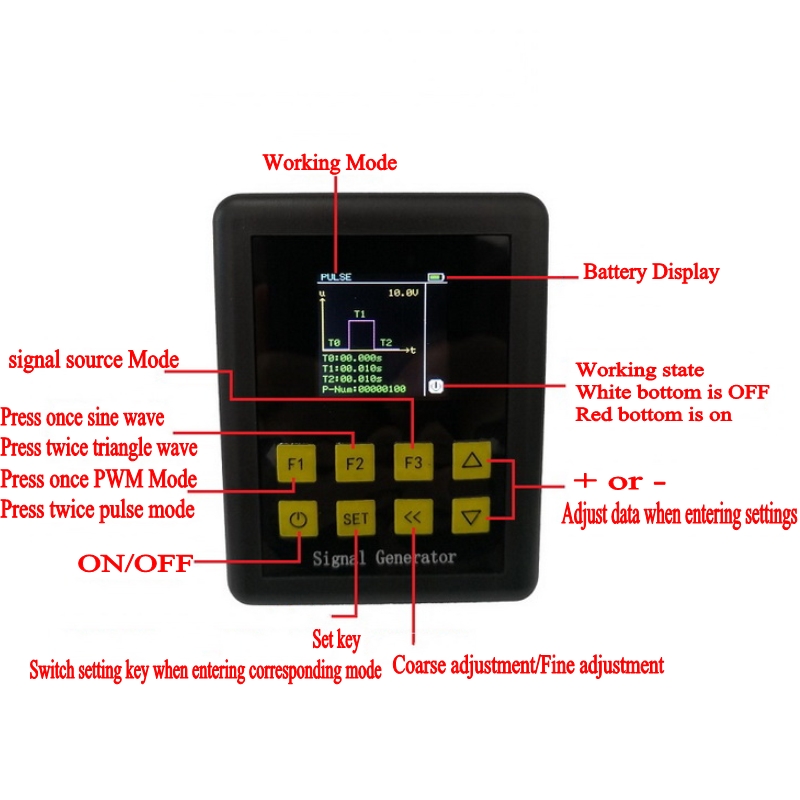

Product function: PWM mode, pulse mode, signal source mode, sine wave mode

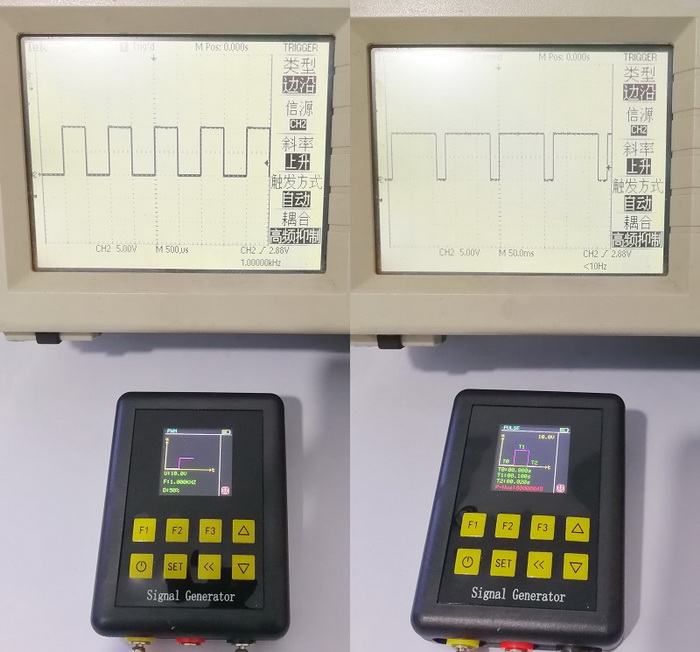

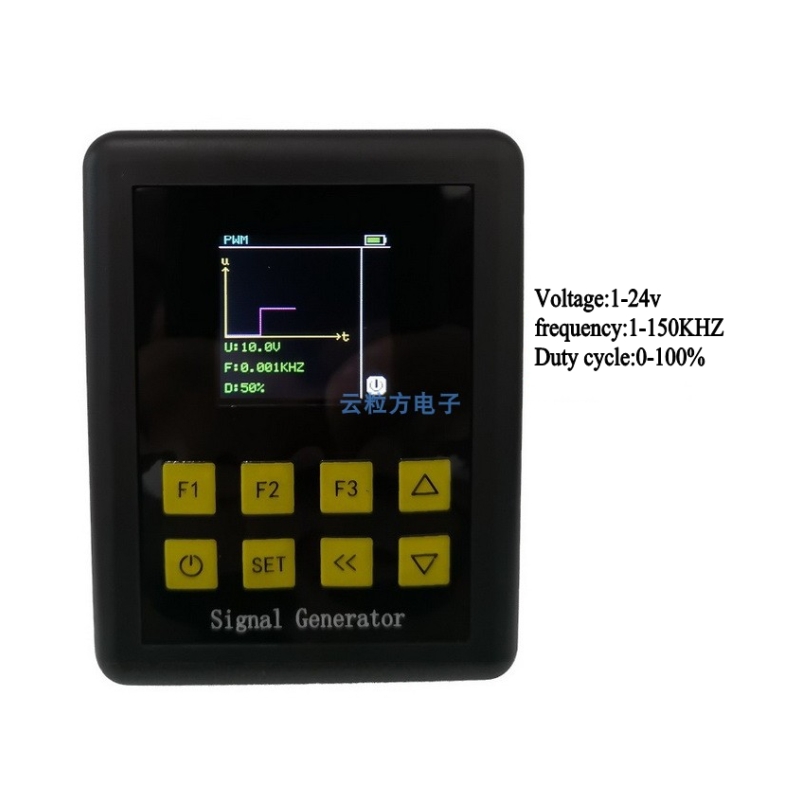

PWM mode: voltage, frequency, duty cycle are adjustable, frequency accuracy is up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100%

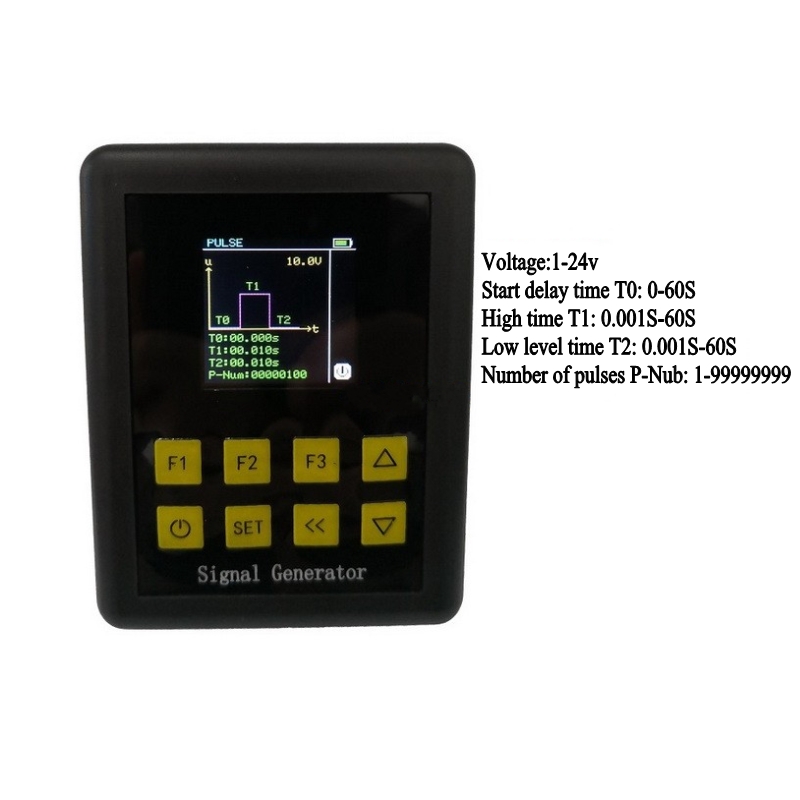

Pulse mode: start delay time T0: 0-60S, high time T1: 0-60S, low time T2: 0-60S, pulse number P-N: 1-99999999, resolution: 0.001S

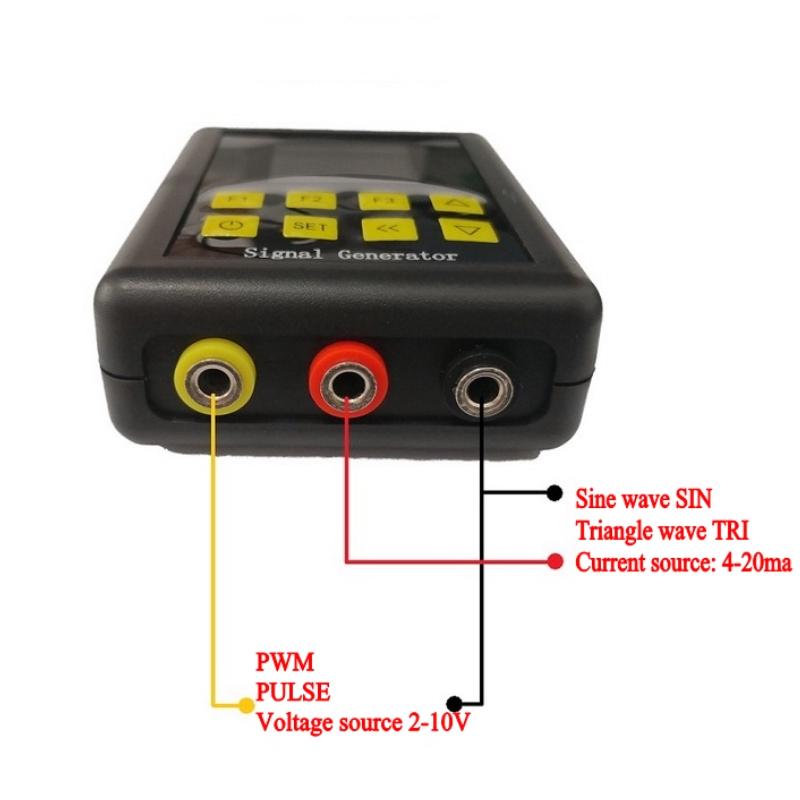

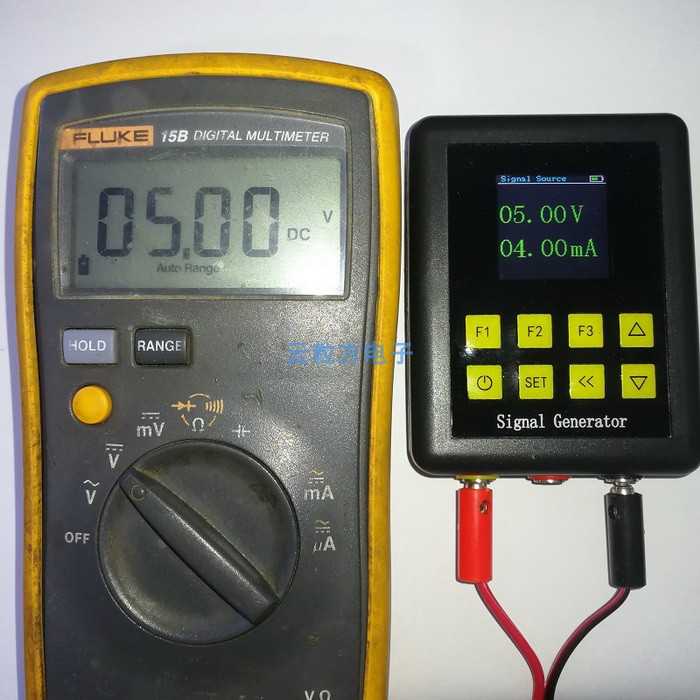

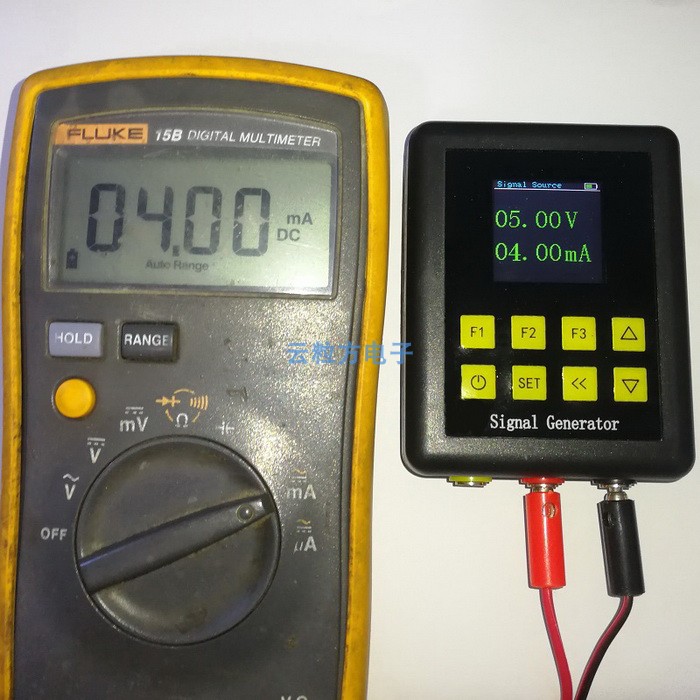

Signal source mode: adjustable voltage source 2-10V, adjustable current source 4-20mA

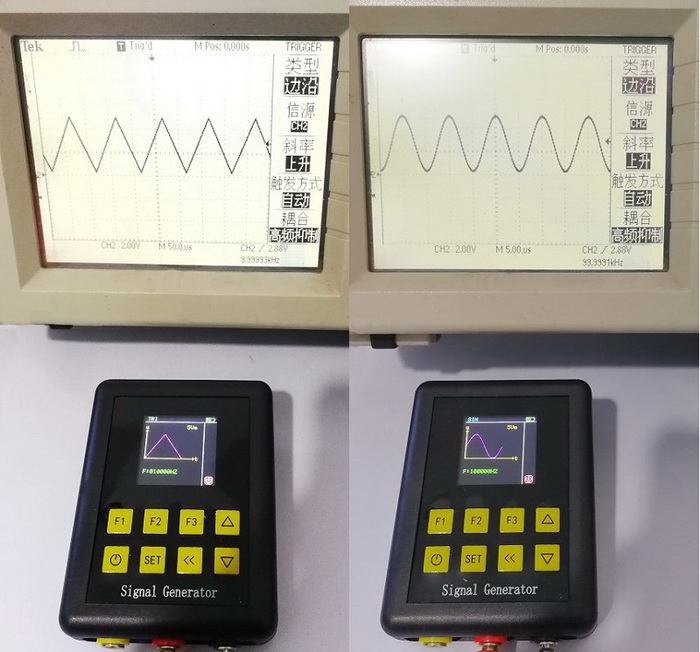

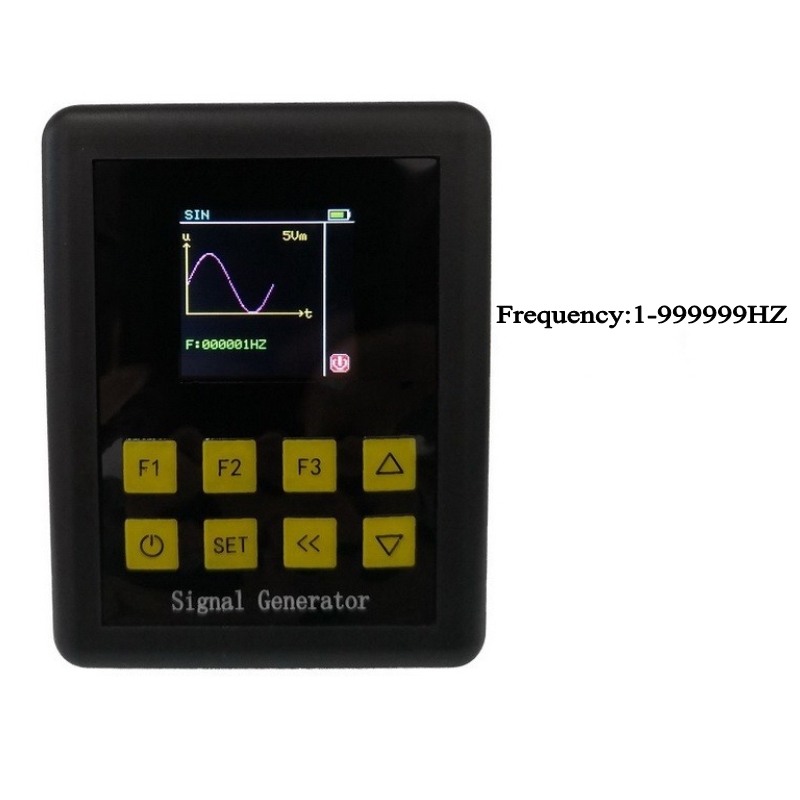

Sine wave mode: 1-999999HZ adjustable (triangular wave adjustable range is the same)

Signal load capacity: The maximum output current is 20mA (Note: This product is a signal source and cannot directly drive high power loads)

Ambient temperature: -10- + 70 ℃
Size: 92mm long, 70mm wide, 28mm high
Weight: 105g

Package Include:

1x Handheld Signal Generator
1 x USB Charging Cable
1 x banana head connected to crocodile clip 2P red and black cable

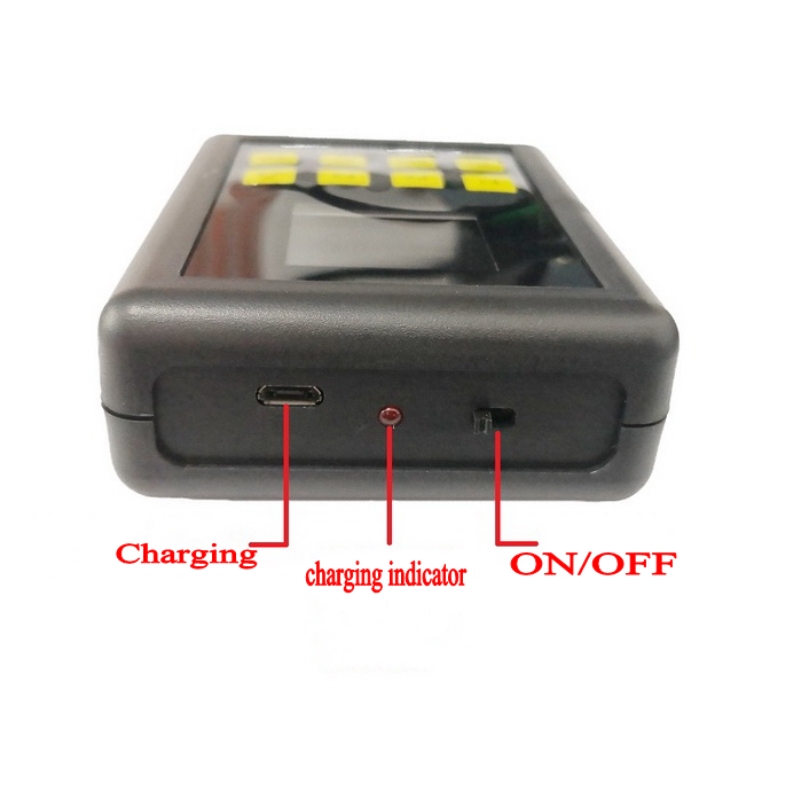

Details Pictures:
